EXFO FTB-200 Compact Modular Platform with...
FTB-7423B-B-EI Single-Mode 1310nm 1550nm OTDR Module
This Unit Has A Current CALIBRATION!
Included Accessories Listed at the Bottom.
Be sure to add us to your Favorites list!.
Condition: NEW! Old Shelf Stock.
Warranty: 30 Day Exchange Warranty
NEW! EXFO FTB-200 Compact Modular Platform With SM OTDR Module
EXFO’s OTDR modules meet all your testing needs with numerous singlemode and multimode configurations available at several wavelengths. The FTB-7000 family
includes four lines of OTDRs: the FTB-7200 LAN/WAN OTDR, the FTB-7200/7300 FTTx Access/Metro OTDR, the FTB-7400 Metro/Long-Haul OTDR and the FTB-7500 Long-Haul OTDR.
* Attenuation dead zone: 4 m
* FTTx ready: passive optical network (PON) and point-to-point testing capabilities
* 40 Gbit/s ready: metro and long-haul network testing capabilities
EXFO FTB-7423B-B-EI Singlemode OTDR Module
* Wavelength: 1310 ± 20/1410 ± 10/1550 ± 20/1625 ± 10
* Dynamic Range: (dB) at 10: 40/37/40 l/38
* Dynamic Range (dB) at 20: 41.5/38.5/40.5 l/39
* Event dead zone (m): 3 / 3 / 3 / 3
* Event dead zone (m): 10 / 10 / 15 / 16

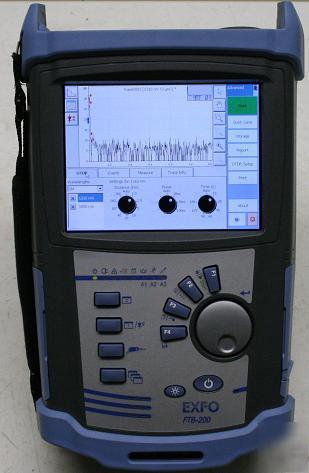

EXFO FTB-200 Compact Modular Platform
The FTB-200 is a compact, modular platform designed for multilayer and multimedium testing
* Tests physical, transport and datacom

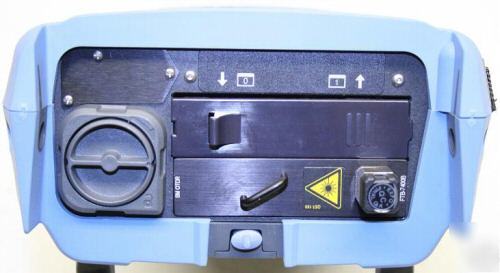

* Accommodates two field-interchangeable modules
* Integrated hardware options such as visual fault locator (VFL), fiber inspection probe and power meter
Designed for metro/access and FTTx networks
* Touchscreen resistant to shock, water, dust and common chemicals
* Dial and shortkeys for easy scrolling and selecting
* Extended battery autonomy of more than eight hours, perfect for OTDR testing
* Four-second power-up time with Windows CE
* Faster acquisition, processing and reporting
EXFO has created the first true compact platform for the supertech. Whether you are testing triple-wavelength insertion loss at the CO or testing data integrity at the core, the FTB-200 has the power, speed and modularity that you need in the field.
Optimized for all phases of the network lifecycle
* System provisioning/service activation
* Maintenance/troubleshooting
* 2.5 kg/5.4 lb (platform only)
* Four-second power-up time with Windows CE/mobile
Faster acquisition, processing and reporting
* Instantaneous AutoSync USB data transfer
* Faster acquisitions—down to five seconds
* Remote control and virtual applications
* File transfer and software upgrading through USB

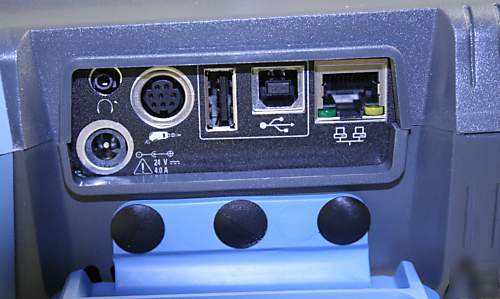

* USB A/A-B, RJ-45 and Bluetooth flexibility

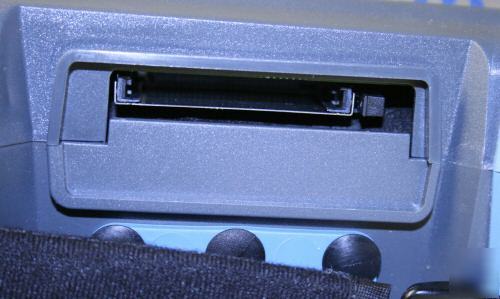

* Compact Flash (memory, Wi-Fi and Bluetooth)
* Waterproof outer shell, sealed joints, door panels for extra port protection
* Advanced TFT transflective display, for great visibility under direct sunlight
* Rugged shortkeys and tracking knob
* Extended battery autonomy of more than eight hours
Display: Touchscreen, color, 640 x 480 TFT 163 mm (6 7/16 in)
Fiber inspection probe connector port (video)
Storage: Internal 80 MB (Flash)
USB sticks 1 GB and 2 GB (optional)
Compact Flash cards (optional)
Batteries: Rechargeable Li-Ion
8 h of operation as per Bellcore TR-NWT-00113
Power Supply: AC/DC adapter, input 100-240 VAC, 50-60 Hz, 2 A max, output: 24 VDC, 90 W
operating —5 °C to 50 °C (23 °F to 122 °F)
storage c —40 °C to 70 °C (—40 °F to 158 °F)
Relative humidity: 0 % to 95 % non-condensing
Size (H x W x D): 322 mm x 197 mm x 109 mm (12 11/16 in x 7 3/4 in x 4 5/16 in)
Vibration: < 1.5 g at 10 Hz to 500 Hz (on three main axes)
Mechanical shock: < 760 mm on six sides and eight main edges (according to GR-196-CORE)

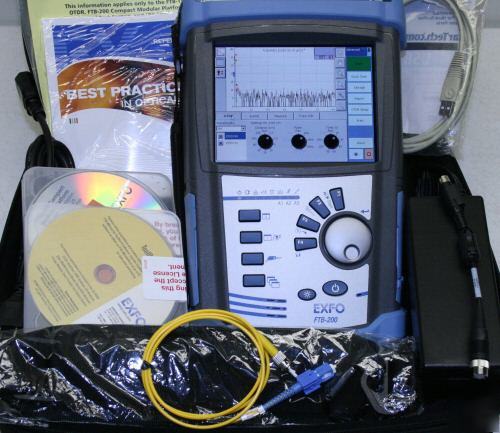

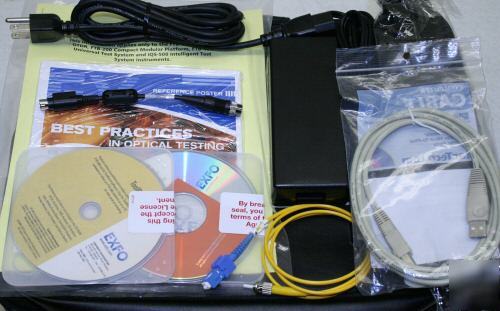

* EXFO FTB-7423B-B-EI Singlemode 1310nm 1550nm OTDR Module
* EXFO Part # 1038754 Converter
* FTB-200 Compact Modular Platform Software
* ToolBox 6 Service Pack 3 Software

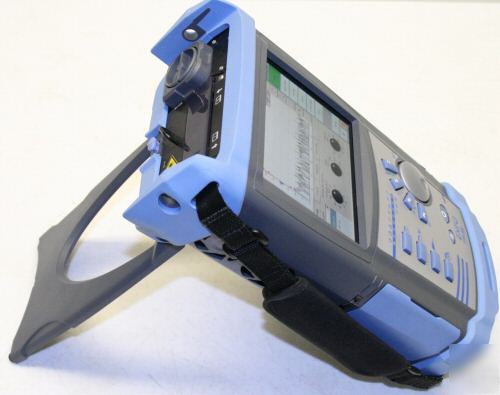

* Carrying Strap for FTB-200
* Carrying Strap For Soft Case
