__________________________________Miller Spoolmate 100 MIG Spoolgun

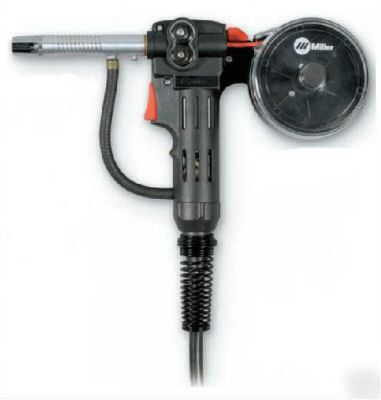

Miller Spoolmate 100 MIG Spoolgun
Designed for use with Millermatic 140, Millermatic 140 w/Auto Set &
Millermatic 180 MIG welders ONLY.
* MIG (GMAW) for Aluminum Wire Size .030 –.035 in (0.8 – 0.9 mm)
* MIG (GMAW) for Mild and Stainless Steel Wire Size .023 –.035 in (0.6 – 0.9 mm)
Home Hobbyist Applications
* Home Maintenance and Repair
* Reliable and economical direct connect for Millermatic 140 and 180 MIG welders after serial #LH210051N Spoolmate 100 Series spool guns provide 12 ft (3.7 m) of cable reach and accessibility for smooth feeding of aluminum wire.
* Recessed contact tip for easier welding and prevention of burn back issues.
* Dual V-knurled drive rolls for consistent feeding.
* Adjustable drive roll tension for feeding different types of wire.
* Adjustable pressure lever for easy loading and unloading of wire.
* Heavy-duty drive motor and cast aluminum gearbox.
* 12 ft (3.7 m) cable with heavy-duty strain relief and direct connection.
* Clear spool cover allows the user to see the amount of wire left before it runs out.

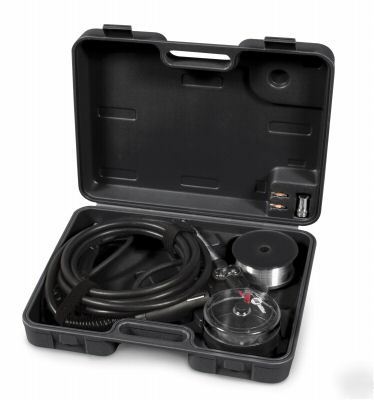

* Convenient carrying case holds gun and cable, extra contact tips, nozzle, and wire (wire not included).
Electrode Wire Diameter Capacity
Maximum Spool Size Capacity
.23 to .035 mild and stainless steel
Spoolmate 100 Series # 300371( 135 Amps @ 30% duty Cycle
Milermatic 140 & 140 w/Autoset
Retrofit required # 300409
_________________________________________
Direct Connect (included switch needs to be installed)
_______________________________________
______________________________________
Direct Hookup( included switch need to be installed)
* Extra contact tips and nozzle
NOTE: The Spoolmate 100 is intended for Home/Hobbyist use ONLY - not production welding. Miller Electric does not recommend the Spoolmate 100 for aluminum MIG wires larger than .030 diameter when using a Millermatic 140 MIG welder.
* Auto and Marine repair.
