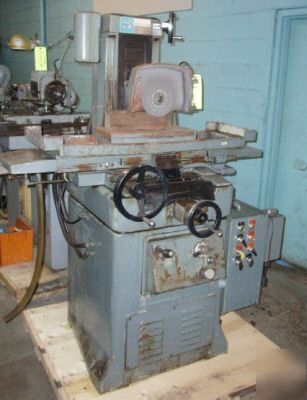

8" x 18" BOYAR-SCHULTZ "HUSK-E-LINE" AUTOMATIC
HYDRAULIC HORIZONTAL-SPINDLE SURFACE GRINDER
Model 2A818, Series "HUSK-E-LINE"
8" x 18" Electro-Magnetic Chuck w/Controls
Bijur Automatic Lubrication System
Table Working Surface, W x L........... 8" x 18"
Grinding Width Capacity, Maximum....... 8"
Grinding Length Capacity, Maximum...... 18"
Height Under 7" Grinding Wheel To Table 13.5"
Table Longitudinal Travel.............. 21"
Table Cross Travel..................... 9.25"
Table Longitudinal Feeds, Range........ 0 to 70 FPM
Table Crossfeeds, Range................ 0 to 3/8 IPR
Grinding Wheel Diameter, Standard...... 7"
Grinding Wheel Width, Standard......... 0.625"
Grinding Wheel Hole Diameter........... 3"
Downfeed Handwheel Graduations......... .00001"
Crossfeed Handwheel Graduations........ .001"
Grinding Wheel Spindle Motor........... 1 HP/3450 RPM
Electrical System...................... 208-220-440/3/60
Floor Space Required, W x D............ 6' x 4'2"
Weight, Approximately.................. 2300 LBS
PRICE: F.O.B. OUR WAREHOUSE........... $3,950.00
All machines/equipment subject to prior sale.
