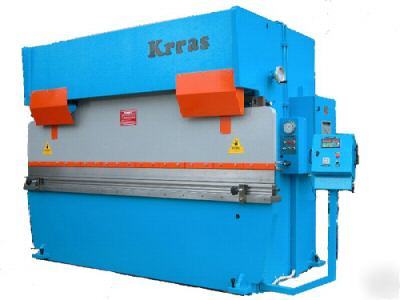

NEW KRRAS 175 TON X 12' MDL 160.37 HYDRAULIC PRESS BRAKE
Overall Dimensions 152"Lx59"Wx92"H 92"H
1 Pcc Standard Gooseneck top tool, full length
1 Pcc Standaard Multi V-Die Block, full length
Two Axis NC Programmable, Model PGP 602
Ballscrew Backgauge complete with:
3 sets of Micro Adjustable Fingers
T-slot in the front face of bed for mounting Front Arms
- Welded frame with fixed and interconnecting beams
- Moveable beam made from sturdy plate to offer
- Long guiding system to keep the upper beam perfectly
- Solid torsion bar to keep ram parallel to aligned
- Hydraulic cylinders honed and hard chromed for
- Inch and semi-automatic modes of operation
- Motorized bending depth readout counter
- Mechanical stops easily adjusted to control
- Top tool full length and multi v-die
- Front support arms with simple stops
Includes AUDEMI Controls PGP-602 CNC programmable ballscrew backgauge 2 axis which is X & Y backgauge & ram
