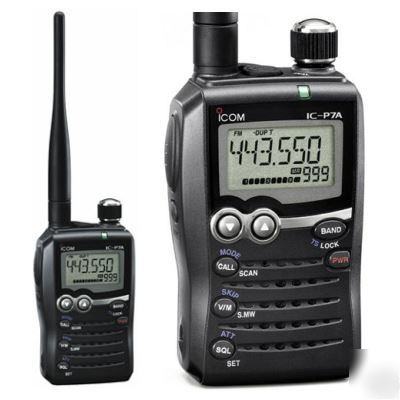

Icom IC-P7A VHF/UHF Dual Band HAM Handheld Transceiver Please download this PDF Brochure for more info and specifications. Features:
* Ultra compact, lightweight body — 47mm × 81mm × 28mm (projections are not included), 160g
* 20 hours of operating time or 15 hours of continuous TV/FM receive capability with slim Lithium-Ion battery pack
* Wideband receiver allows you to listen to FM, TV (audio) broadcasts and other service communications
* VHF/UHF dual bander with 1.5W/1.0W output power (One band at a time)
* Minimum number of buttons for simple operation
* CTCSS and DTCS tone for repeater access and quiet stand-by
* 1000 alphanumeric memory channels with flexible memory bank system
* Auto memory write scan stores detected busy channels in the auto memory write bank, and you can transfer them to the regular memory channels
* Bank link scan allows you to detect busy channels from the selected banks
* The pocket beep alerts the operator with a beep sound when the transceiver receives a signal containing a preset tone
* Large backlit LCD with backlit buttons for night time operation
* Priority watch with priority beep
* Frequency: Tx: 136–173.995, 400–478.995 Rx: 0.495–999.990
* Mode: FM, AM*, WFM* - *Rx only
* Number of memory channels: 1252 (1000 regular, 2 call, 50 scan edges and 200 auto memory write)
* Antenna impedance: 50Ω (SMA)
* Power supply requirement: 3.7V DC (with specified battery pack)
* Usable temperature range: -10°C to +60°C
* Frequency stability: ±6 ppm (-10°C to +60°C)
* Tuning steps (KHz): 5, 6.25, 8.33, 9, 10, 12.5, 15, 20, 25, 30, 50, 100, 200kHz
* Ext. MIC/SP connector: 4-conductor 3.5(d) mm (1/8")/ 2kΩ/ 8Ω
* Dimensions (W × H × D)(projections not included): 47mm × 81mm × 28 mm
* Weight: 160g/5.6oz (with BP-243 and antenna)
* Current drain (at 3.7 V DC): Transmit: High(VHF/UHF) 1.5/1.5 A typ / Low(VHF/UHF) 0.4A/0.5A Receive: Max. Audio - 80mA, Stand-by - 150mA
