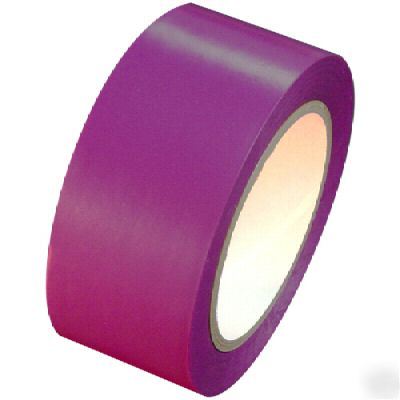

Purple Vinyl Tape (matte surface-soft PVC).
CVT-636 2" by 36 yards each roll.
Used for color coding; lane marking and safety coding to meet
OSHA requirements; decorating, striping on vehicles, boats, sporting
equipment, etc. Masking for hard chrome plating & anodizing;
harness and pipe wrapping. Duct and joint sealing.
Product is of superior quality, with a long shelf-life, and “write-onâ€
capability. It provides a very effective vapor and moisture barrier. It
is highly conformable and resistant to aging, sun, water, fungus,
bacteria, oil, acids, alkalies and corrosive chemicals. It provides
good abrasion, impact and rupture resistance.
Backing Matte surface, soft PVC
Adhesive Synthetic rubber resin
Total thickness 6 mil (0.15mm)
Temperature resistance -20°F to +176°F
Moisture absorption Less than 1.5%
Moisture vapor transmission Less than 2.5% (gm/100 sq in/24 hrs)
Metal corrosion None to copper, brass, steel, aluminum
Accelerated aging factor Greater than 100%
(% of original adhesion to backing after aging)
Government specifications Conforms to A-A-1689B, Type II
(met cancelled spec PPP-T-66E, Type 1, Class 2)
