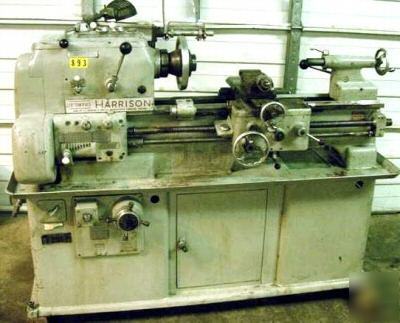

Harrison13 In Tool Room Engine Lathe
SPECIFICATIONS: SWING OVER BED ............................ 13 "
SWING OVER CROSS SLIDE .................... 8-1/2"
DISTANCE BETWEEN CENTERS ..................40
HOLE THROUGH SPINDLE ...................... 1.625 INCH
SPINDLE NOSE ............... L0 NPSE
SPINDLE SPEEDS ........: 35 TO750 RPM OR 59 TO 1250 RPM
THREADS, INCH ........................ 4 TO 60 T.P.i.
(built-in metric-conversion cluster which enabled a range of 11 metric pitches)
POWER FEEDS.................. 0.0017" to 0.025" PER iNCH
HEADSTOCK & TAILSTOCK SPINDLE CENTER TAPER #3 MORSE
TAILSTOCK SPINDLE DIAMETER ................ 1-1/4"
TAILSTOCK SPINDLE TRAVEL .................. 4-1/2"
8" (203 mm) deep induction-hardened bed
APPROXIMATE WEIGHT ........................ 2000 LBS.
APPROXIMATE FLOOR SPACE ................... 61" x 30"
INSPECT UNDER POWER IN OUR SC WAREHOUSE BY APPOINTMENT
Small Foot Print floor area of only 29" x 60"
13 " swing by 40" Centers - 2 Hp Motor Freshly Updated -
HITACHI Variable Frequency Drive Controller Updated
Clutched and braked all-geared headstock
Built-in metric-conversion cluster which enabled a range of 11 metric pitches
36 SAE Inch threads and feeds from 4 to 60 tpi
- 2 HORSE POWER MAIN DRIVE MOTOR FOR 220 VOLT 1 PHASE OPERATION
For history and Info on 13 Inch Harrisonmodel look here
http://www.lathes.co.uk/harrison/page11.html
by calling (***) 979 5691 Cell (***)-641-6457
