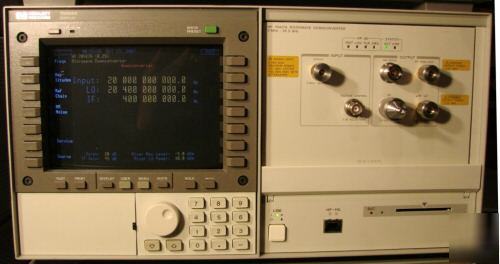

HP/Agilent 71707A is a 70004A Color Display Mainframe with 70427A Microwave Downconverter Module. 70427A Module Serial Number: 3642A00231. Unit is tested in great working condition. 70427A can be used as stand alone microwave source with ouput frequency range of 2.4GHz to 25.8GHz and tuning resolution of 600MHz. I will provide 7-Day Right to Return if the unit is DOA. Unit sold under 30-day warranty. Example below shown 20GHz Phase Noise is measured, and also module used as stand alone microwave source generating 25.8GHz signal.
RF Input Frequency range: 1.5GHz to 26.5GHz; Input Power Level: -40dBm to +30dBm
Output IF Frequency Range: 5MHz to 1200MHz; output Level: 0dBm to +5dBm
Local Oscillator frequency range: 2.4GHz to 25.8GHz; Frequency resolution: 600MHz
Additional Pictures: (71707A systems, 70427A module, singal genetaror and spectrum analyzer etc. used in the system to show phase noise measurement at 20GHz, also 70427A as a microwave source to generate 25.8GHz signal)
http://i18.photobucket.com/albums/b105/david_ge/Oct2007/71707A-1.jpg
http://i18.photobucket.com/albums/b105/david_ge/Oct2007/71707A-2.jpg
http://i18.photobucket.com/albums/b105/david_ge/Oct2007/71707A-3.jpg
http://i18.photobucket.com/albums/b105/david_ge/Oct2007/71707A-4.jpg
http://i18.photobucket.com/albums/b105/david_ge/Oct2007/71707A-5.jpg
http://i18.photobucket.com/albums/b105/david_ge/Oct2007/71707A-6.jpg
http://i18.photobucket.com/albums/b105/david_ge/Oct2007/71707A-7.jpg
http://i18.photobucket.com/albums/b105/david_ge/Oct2007/71707A-8.jpg
http://i18.photobucket.com/albums/b105/david_ge/Oct2007/71707A-9.jpg
http://i18.photobucket.com/albums/b105/david_ge/Oct2007/70427A-1.jpg
http://i18.photobucket.com/albums/b105/david_ge/Oct2007/70427A-2.jpg
http://i18.photobucket.com/albums/b105/david_ge/Oct2007/70427A-3.jpg
http://i18.photobucket.com/albums/b105/david_ge/Oct2007/70427A-4.jpg
http://www.home.agilent.com/upload/cmc_upload/All/EPSG084492.pdf
HP/Agilent 70427 User's Guide:
Low Phase Noise Test Set using 71707A for 26.5GHz Application:
http://cp.literature.agilent.com/litweb/pdf/5966-0805E.pdf
http://www.home.agilent.com/upload/cmc_upload/All/EPSG084492.pdf
