USB interface 150 Mhz dual trace digital storage
oscilloscope and Spectral analysis Device

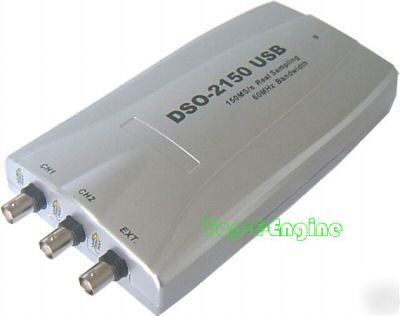

DSO 2150 is a USB interface 150 Mhz dual trace digital storage virtual oscilloscope,
it need to be connected with PC to use and it can view signal waveform & spectrum. DSO 2150
be saved to disk for future use. This is a wonderful tool that you can use for measure
* Operating System: Windows 98/ME/2000/XP/VISTA
* Graphic Card: Microsoft DirectX supported , Screen resolution:
DSO-2150 USB is a portable PC-based Digital Oscilloscope.
DSO-2150 USB has the following features: 60MHz analog bandwidth, 150MHz
DSO-2150 USB uses USB that supports plug’n play.
Best performance for your dollar
DSO-2150 USB has many features that is comparable to the high speed
stand-alone DSOs. But it costs a fraction of the price.
DSO-2150 USB does not need an external power source, because it is
bus-powered from USB.DSO-2150 USB is a Windows software that controls
DSO-2150 USB is easy to use. It is intuitive and easy to understand.
You can change DSO-2150 USB screen size as you need.
Various data format processing
DSO-2150 USB can save waveform in the following formats: text file, jpg/bmp
graphic file, MS excel/word file.
DSO-2150 USB has fast screen update rate.
DSO-2150 USB has 23 measurement functions.
DSO-2150 USB uses digital persistence and histogram method so that the
display resembles an analog oscilloscope screen.
10mV ~ 5V/div @ x1 probe(10mV, 20mV, 50mV, 100mV, 200mV, 500mV, 1V, 2V, 5V/div1,2,5 sequence)
35Vpk (DC + peak AC < 10 kHz, without external attenuation)
4ns/div ~ 1h/div(4ns, 10ns, 20ns, 40ns, 100ns, 200ns, 400ns, 1us, 2us, 4us, 10us, 20us, 40us, 100us, 200us, 400us, 1ms, 2ms, 4ms, 10ms, 20ms, 40ms, 100ms, 200ms, 400ms, 1s,2s, 4s, 10s,20s,40s,10m,20m,40m,1h /div 1-2-4 sequence)
Realtime sampling: 4ns /div ~ 400ms/div.
Edge trigger: Rising edge, falling edge.
Vp-p, Vmax, Vmin, Vmean, Vrms, Vamp, Vhigh, Vlow, positive overshoot, negative overshoot, cycle mean, cycle RMS, period, frequency, positive pulse width, negative pulse width, rise time (10%~90%), fall time (10%~90%), positive duty cycle, negative duty cycle
Addition, Subtraction, Multiplication, Division
Rectangular, Hanning, Hamming, Blackman Window
No external power source required.
4. An Operating Manual in Engliah.
