ESAB Welding and Cutting Products.

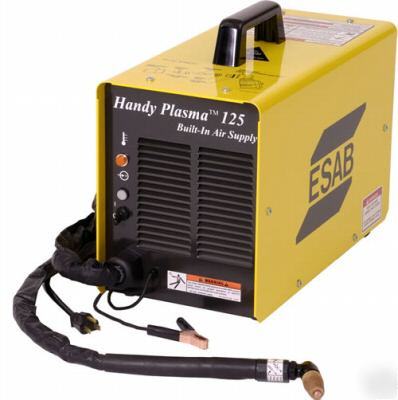

This portable cutting package weighs just 60 lbs. (27.2 kg) and plugs into a standard 115 vac outlet. It is designed to cut up to 1/8 in. (3.18 mm) carbon steel.
- Plugs into standard 115 V outlet.
- Portable - weighs just 60 lbs. (27.2 kg) - carry it anywhere.
- Cutting capability on carbon steel up to 1/8 in. (3.18 mm) thick.
- Fixed output makes it easy to use.
- Equipped with patented, repairable PT-34 torch with double ended electrode for reduced operating cost.
- One-year warranty on console and torch.
Output: 12 amps @ 30% dutly cycle
Input Voltage: 115 V, 60 Hz, 1 phase
Input Current @ rated load: 20 A @ 115 V
Output Rating Current Range: 11 amps - 100 volts
Open Circuit Voltage: 290 V DC max
The HandyPlasma package includes everything you need for Plasmarc cutting: power console, PT-34 torch, built-in-air compressor, torch spare parts kit, work cable, and input power cable.
