"MDF-300 is a standard-sized dual monitor module used to monitor and supervise two independent two-wire initiating device circuits (IDCs) at two separate, consecutive addresses in intelligent, two-wire systems. LiteSpeed™ is a communication protocol developed by Fire•Lite Engineering that greatly enhances the speed of communication between analog intelligent devices. Intelligent devices communicate in a grouped fashion. If one of the devices within the group has new information, the panel CPU stops the group poll and concentrates on single points. The net effect is response speed greater than five times that of other designs.
The MDF-300 Dual Monitor Module is intended for use in intelligent, two-wire systems. It provides two independent two-wire initiating device circuits (IDCs) at two separate, consecutive addresses. It is capable of monitoring normally open contact fire alarm and supervisory devices; or either normally open or normally closed security devices. The module has a single panel-controlled LED.
NOTE: The MDF-300 provides two Class B (Style Y) IDC circuits ONLY. Class A (Style Z) IDC circuits are NOT supported in any application.

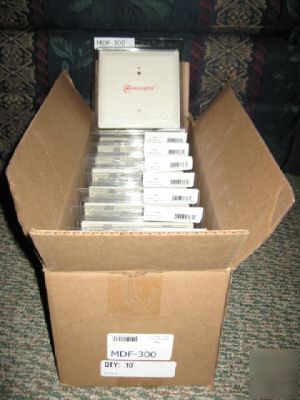

Fire-Lite MDF300 Dual Monitor Module
Normal operating voltage range: 15 to 32 VDC.
Maximum Current Draw: 6.4 mA (LED on).
Average Operating Current: 5 to 32 VDC.
Maximum IDC wiring resistance : 1,500 Ohms.
Maximum IDC Voltage : 11.7 Volts.
Temperature Range : 32ºF to 120ºF (0ºC to 49ºC)
Humidity : 10% to 93% Non-condensing.
Dimensions : 4½†H x 4†W x 1¼†D (Mounts to a 4†square by 2⅛†deep box).
