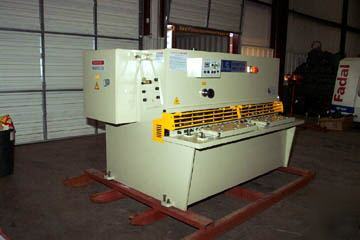

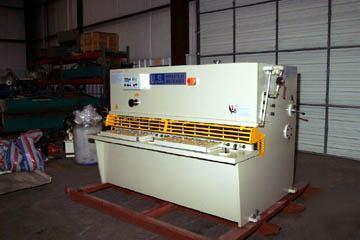

ONE (1) NEW U.S. INDUSTRIAL 6’ X 1/4” HYDRAULIC SHEAR
STANDARD EQUIPMENT: (All below comes with the machine)
Squaring Arm Bolt on table segments…qty of 3
High Carbon, High Chrome Shear Blades Hold-downs faced w/anti-mar neoprene
Quantity of 24, 1” ball transfers Swing Beam Design Manual Quick Change Blade gap adj. Pressure Sensing Hold downs Squaring Arm, 43.5” from blade to end Electric stroke adjustment Stroke Counter Operator control console Front-controlled power back gauge Full-length shadow lighting
Blade Guard, Micro switch protected Low noise gear pump
Hydraulic, Electrical Overload Protection 3 support arms
Automatic Swing-up on back gauge
Shearing Capacity 1/4” Mild Steel @ 65,000 PSI
Adjustment Range Of Back Gauge 0.75”-36”
Hydraulic Oil Capacity 45 Gal.
Dimensions (L x W x H) 103” x 63” x 63”
PRICE……………. ……………….……. $17,900.00
Material Support/Drop Chute $ 995.00
TOTAL PRICE, FOB MEMPHIS TN $ 18,985.00
3-Axis CNC Programmable Back Gauge $ 3,990.00
* Touch-screen operated. Controls back gauge depth, blade gap
and stroke length 10 program storage capacity, Can be operated
Front & Rear Protection Guards $ 995.00
6 Foot Squaring Arm $ 1,295.00
8 Foot Squaring Arm $ 1,495.00
10 Foot Squaring Arm $ 1,695.00
Pneumatic Sheet Support $ 3,450.00
Installation and Training $ 750.00/Day
