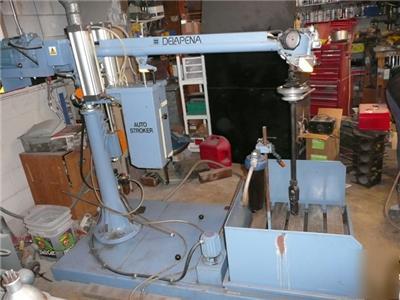

DELAPENA AUTO STROKER POWER STROKE HONE
DELAPENA AUTOMATIC POWER STROKING CYLINDER HONING MACHINE
We have 2 of these and are letting one go as we are going full time into manufacturing and ending our engine shop. This is one of the most versatile powerstroke honing machines we ever used. Because of the open front area and T Table almost any hold down configuration to hold a block or any other piece is easy. Although we kept our line hone attachment. You can stand a block on its end and line hone with this machine as well. This machine has seen less than 100 hours of work and was bought new at a trade show.
Friction Feed Hone and Adjustable Hone Head Roughing and Finishing Load Dwell Sensing System
Manual or Auto Hold and Jog System
Upper and Lower Stoke Height Settings Controlled Stock Removal with .0002"
Quick Knob For Short Stroking Top & Bottom To Correct Taper Adjustable Stroke or Dwell For Optimum Finish
Variable Spindle RPM Control On The Fly 40 RPM - 250 RPM
T table for Non Block Pieces or Will Handle Any Block Fixture.
New Stones and Std Hone Head 3-5 inch Bores
Will Accept Sunnen Hone Heads From Midget To Major Head
Spindle Motor Power 3 HP Drive System 240 or 480/3 Phase
Spindle Variator Motor Speed (RPM) 40-250 RPM variable
Dimensions 8 ft Long X 6 ft High X 3 1/2 ft wide
Voltage Requirement 208/240 Volt or 480 Volt 3 Phase 50/60 Hz
Air Requirement 7 cfm at 100 PSI
Hone Capacity Standard 2.5" to 6.0" Diameter (57mm to 173mm)
Hone Capacity Optional 1.5"to 7" Diameter (38mm to 178mm)
Manual Stroke Length "D" 14" Maximum Length of Cylinder 17"
Power Stroke Length "D" 14" Maximum Length of Cylinder 17"
Stroking Speed Infinitely Variable
Coolant System Pump Motor Single Phase 115 V 50/60 Hz
