Unipunch strippit amada weidemann turret punch grinder


Poster: 1177301585@iowa-industrial.com

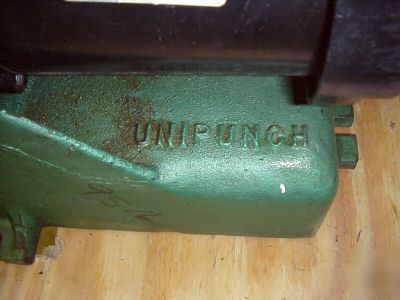

Unipunch strippit amada weidemann turret punch grinder

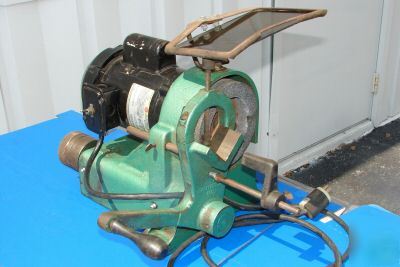

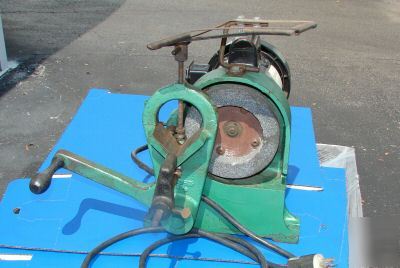

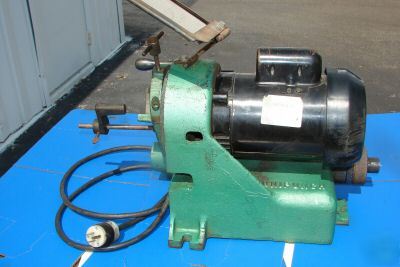

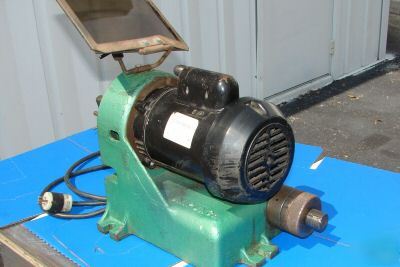

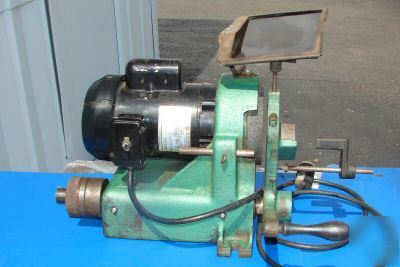

This is a very versatile tool designed to precision sharpen most turret punch press tooling as well as most hand punches too.
120 volt 1 phase perfect for any shop
Outstanding bargain compare to new price.
Manufactor description on a new item for your reference to usage.
Punch and Die Sharpener is a bench type grinder. Simplicity of design and operation allows quick and easy sharpening of Flat Face Punches and Dies up to 2 5⁄8" (66.68 mm) diameter maximum.

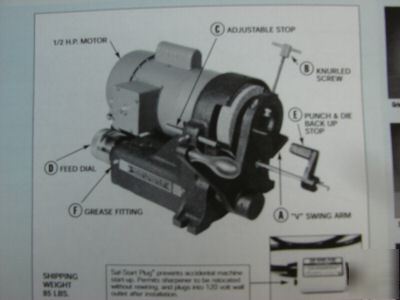

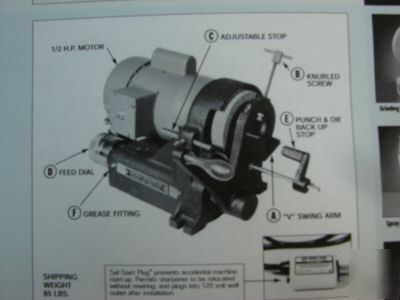

For best results, the Sharpener should be bolted to a level worktable with the Swing Arm Punch and Die Holder handle extending beyond the edge of the table. The sharpener has a 1⁄2 H.P., 3450-RPM 115/208/230-volt 60 cycle motor. The Punch or Die is positioned in Swing Arm (A) and fastened securely in position with Knurled Head Screw (B). Adjustable Stop (C) is used for positioning of Punches and Dies in relation to grinding surface of the Wheel. Spring-loaded Ball Stop prevents binding as Punch or Die passes the gauge point. Laying straight edge across face of wheel sets the location of adjustable stop in relation to face of grinding wheel. The stop is adjusted out to it.
Holding Swing Arm Handle in right hand, swing up past the wheel while turning knurled feed dial (D) with left hand for precision control of feed. Each mark on the dial indicates .005" (.13 mm) feed. Adjust Back-up Stop (E) along bar to back up Punches and Dies. This Back-up Stop is also used to insure grinding Punches and Dies to the same lengths. Optional Spray Mist Attachment (Cat.No.1129) is available for mist cooling and lubricating Punches and Dies, and is equipped with a one-gallon tank, one nozzle, bracket, five-foot double tubing and operates from an air line pressure of 6 psi and up. Air inlet is 1⁄4" NPS(M). Grinding tolerance – 1"(25.4mm) diameter rod ground 90 degrees within .003: (.08mm).
_________________________________________________________________
You never know what bargains you will find!
Any questions email or call Chris @ (***)-433-3597
