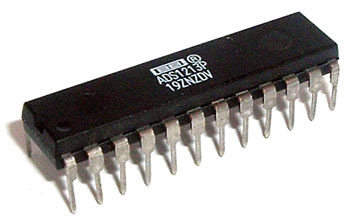

ADS1213P ADS1213 P ~ 22-Bit ANALOG-TO-DIGITAL CONVERTER
The ADS1213P is a precision, wide dynamic range, delta-sigma Analog-to-Digital (A/D) converter with 24-bit resolution operating from a single +5V supply. The differential inputs are ideal for direct connection to transducers or low-level voltage signals. The delta-sigma architecture is used for wide dynamic range and to ensure 22 bits of no-missing-code performance. An effective resolution of 20 bits is achieved through the use of a very low-noise input amplifier at conversion rates up to 10Hz. Effective resolutions of 16 bits can be maintained up to a sample rate of 1kHz through the use of the unique Turbo Modulator mode of operation. The dynamic range of the converter is further increased by providing a low-noise programmable gain amplifier with a gain range of 1 to 16 in binary steps. The ADS1213 is designed for high-resolution measurement applications in smart transmitters, industrial process control, weigh scales, chromatography and portable instrumentation. The converter includes a flexible synchronous serial interface that is SPI compatible and also offers a two-wire control mode for low-cost isolation. The ADS1213 includes a 4-channel input multiplexer.
20 BITS EFFECTIVE RESOLUTION AT 10Hz AND 16 BITS AT 1000Hz
PROGRAMMABLE CUTOFF FREQUENCY UP TO 6.25kHz
ADS1213 INCLUDES 4-CHANNEL MUX
Need more pieces? Contact us for a custom listing for the quantity you need.
Please visit our store for more hard to find components and supplies.
Any questions? Please contact us. If you haven't heard back from us, check your spam folder to be sure our email isn't there.
We make every effort to respond to all questions within 24 hours, Monday through Friday.
West Florida Components Inventory number: IC315
