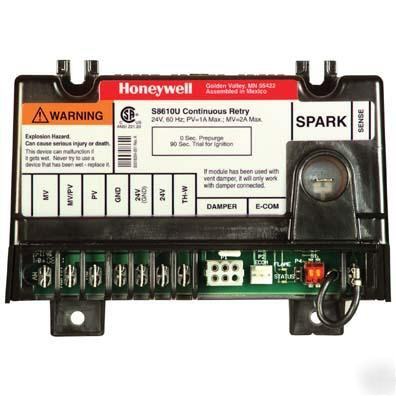

Field service replacement for most Honeywell, Robertshaw, Johnson, and UTEC (HSC) Intermittent Pilot Ignition Modules. Provides electronic control of most intermittent pilot ignition systems used on gas-fired furnaces, boilers, and other heating appliances.
• Provides ignition sequence, flame monitoring and safety shutoff for intermittent pilot central furnaces and heating appliances.
• Provides 100 percent pilot gas shutoff if pilot fails to light; after 6-minute delay, trial for ignition is repeated. Ignition trial/delay sequence is repeated until the appliance lights or call for heat is removed.
• For use with Natural or LP gas.
• For use in single rod or dual rod/remote sense applications. Includes relay contacts for use with any intermittent pilot gas control string with maximum 1.0A pilot or 2.0A main valve rating; Honeywell VR8204, VR8304 or VR8345M combination gas control recommended.
• Functional equivalent of S86, S8600, S8610 and S90 modules.
• Includes spark cable adapters to allow field replacement of both Honeywell and competitive controls without replacing existing spark cable.
Line 24 V (18-30 Vac) 50/60 Hz
0.1 A plus valve load @ 24 Vac
Flame Failure Response Time: 2 seconds maximum
The green Status LED provides system status and error codes
The yellow Flame LED indicates flame presence and flame strength
Honeywell models VR8204 and VR8304
Minimum ambient temperature rating is -40°F (-40°C)
Maximum ambient rating when used with 2.0 A main valve is 165°F (74°C)
One or Two Rod Intermittent Pilot Control with continuous retry trial time with configurable lockout timing of 15 or 90 seconds and configurable prepurge of 30 seconds or no prepurge
Continous retry, after trial for ignition, pilot gas shuts off for 5 minutes, then another trial for pilot ignition takes place
Internal high voltage spark generator
Configurable to 30 seconds or no prepurge
Configurable to 15 seconds or 90 seconds
Maximum Valve Load @ 24 Vac (Amps)
1A Pilot, 2A Main @ 165 F; 1A Pilot, 1A Main @ 175 F
3 15/16 in. high x 5 7/16 in. wide x 2 5/8 in. deep
100 mm high x 138 mm wide x 67 mm deep
Maximum Ambient Temperature (F)
Maximum Ambient Temperature (C)
Approvals, Canadian Standards Association
Damper connection with automatic vent damper plug
5 minute delay after failed trial for ignition.
Flame Failure Response Time (sec)
FUNCTIONALLY REPLACES ALL OF THE FOLLOWING:
HONEYWELL: S86A1001, S86A1019, S86A1027, S86A1035, S86B1009, S86B1017, S86B1025, S86C1007, S86C1015, S86C1023, S86C1031, Y, S86C1049, S86C1056, S86D1005, S86D1013, S86D1021, S86E1002, S86E1010, S86E1028, S86E1036, S86E1044, S86E1051, S86E1069, S86E1077, S86E1101, S86E1119, S86E1127, S86F1000, S86F1018, S86F1026, S86F1042, S86F1059, S86F1067, S86F1075, S86F1083, S86F1091, S86G1008, S86G1016, S86G1024, S86G1032, S86G1057, S86G1073, S86H1006, S86H1014, S86H1022, S86H1048, S86H1055, S86H1063, S86H1089, S86H1097, S86H1105, S86H1113, S86H1121, S86H1139, S86H1147, S90A1005, S90B1003, S90B1011, S860C1000, S860D1009, S860D1017, S8600A1001, S8600B1009, S8600B1025, S8600B3005, S8600B3013, S8600C1015, S8600C3003, S8600F1000, S8600F1034, S8600F1042, O, S8600H1006, S8600H1014, S8600H1022, S8600H1048, S8600H1055, S8600H1063, S8600H1071, S8600H1089, S8600H1097, S8600H1105, S8600H3002, S8600H3010, S8600M1005, S8600M1013, S8600M1021, S8600M2003, S8600M3001, S8600M4009, S8610A1009, S8610B1007, S8610B1015, S8610B1023, S8610B3003, U, S8610C1005, S8610C1013, S8610C3001, S8610F1008, S8610F1016, S8610F1024, S8610F1032, S8610H1004, S8610H1012, S8610H1020, S8610H1038, S8610H1046, S8610H1053, S8610H1061, S8610H1079, S8610H1095, S8610H3000, S8610H3018, S8610H3026, S8610M1003, S8610M1011, S8610M1029, S8610M3009, S8610M3017, S8610U1003, S8610U1011, S8620C1003, S8620C1011, S8620H1002, S8620H1010, S8620H1028, S8660D1002, S8660D1010, S8660J1008, S8660J1016, S8660J1024, S8660K1006, S8660K1014, A, S8660K1022, S8670D1000, S8670D1018, S8670D1026, S8670D3006, S8670D3014, S8670E1007, S8670E3003, S8670J3002, S8670J3010, S8670K3000, S8680J1004
Johnson Controls: CSA35A-617R, CSA35A-618R, CSA42A-600R, CSA42A-601R, CSA42A-602R, CSA42A-603R, CSA42A-604R, CSA43A-600R, R, CSA44A-600R, CSA45A-601R, CSA45A-602R, CSA46A-600R, CSA48A-600R, CSA49A-600R, CSA49A-605R, CSA51A-601R, CSA52A-600R, G60AAA-1, G60AAG-1, G60AAG-2, G60AAG-3, G60AAG-4, G60AAG-5, G60AAG-6, G60AAG-7, G60CAA-1, E, G60CAA-3, G60CAG-1, G60CAG-2, G60CAG-3, G60CAG-4, G60CAG-5, G60CAG-6, G60CAG-7, G60CAG-8, G60CAG-9, G60CBA-1, G60CBA-2, G60CBA-3, G60CBG-1, G60CBG-2, G60CBG-3, G60CBG-4, G60CBG-5, G60CBG-6, G60CBG-7, G60CBG-8, G60CBG-9, G60CBG-10, G60CBG-11, G60CBG-12, G60CBG-13, G60CBG-14, G60CBG-15, G60CBG-16, G60CBG-17, G60CCA-1, G60CCG-1, G60CPG-1, A, G60DBG-1, G60DCG-1, G60DCG-2, G60DCG-3, G60DCG-4, G60PAG-1, G60PAG-2, G60PAG-3, G60PAG-4, G60PAG-5, G60PAG-6, G60PAJ-1, G60PAK-1, G60PAK-2, G60PFH-1, G60PFH-2, G60PFL-1, G60PFQ-1, G60PVL-1, G60QAG-1, G60QAG-2, G60QAG-3, G60QAG-4, G60QAK-1, G60QBG-1, G60QBG-2, G60QBG-3, G60QBG-4, G60QBG-5, G60QBG-6, G60QBG-7, G60QBG-8, G60QBG-9, G60QBH-1, G60QBK-1, G60QBK-2, G60QBK-3, G60QBL-1, G60QBL-2, G60QCG-1, G60QCJ-1, G60QCL-1, G60QDG-1, G60QFL-1, G60QGH-1, G60QHL-1, G60QHL-2, G60QJL-1, G60QLG-1, G60QLK-1, G60QPL-1, G60QRH-1, G60QRH-2, G60QRH-3, G60QRL-1, G60QRL-2, G60QRL-3, G60QSL-1, G60QTH-1, G60QTL-1, G60RAG-1, G60RAK-1, G60RBG-1, G60RBG-2, T, G60RBG-3, G60RBK-1, G60RBK-2, G60RCG-1, G60RCG-2, G60RCJ-1, G60RDG-1, G60RDK-1, G60RGL-1, G60RHL-1, G60RHP-1, G60RPL-1, G60RSL-1, G60TTL-1, G60ZAG-1, G60ZAG-2, G65BBG-1, G65BBG-2, G65BBG-3, G65BBG-4, G65BBG-5, G65BBG-6, G65BBG-7, G65BBG-8, G65BBM-1, G65BBM-2, G65BBM-3, G65BBM-4, G65BCG-1, G65BCM-1, G65BFG-1, G65BFM, G65BKG-1, G65BKG-2, G65BKG-3, G65BKM-1, G65BKM-2, G65BKM-3, G65BLG-1, G65BLG-2, G65DBG, G65DBM-1, G65DBM-2, G65DBM-3, G65DCM-1, G65DFG, G65DFM-1, G65DKG, G65DKM, G65DKM-1, G65DLM-1, G65FBG, G65FFG, G65FKG, G66AG-1, G66AG-2, G66BG-1, G66MG-1, G66MG-2, G66NG-1, G67AG-3, G67AG-4, G67AG-7, G67AG-8, G67AG-9, G67AG-10, G67AG-11, G67BG-2, G67BG-3, G67BG-4, G67BG-5, G67MG-1, G67MG-2, G67MG-3, G67MG-4, H, G67NG-2, G67NG-4, G600AX-1, G600AX-2, G600AX-3, G600AY-1, G600LX-1, G600LX-2, G600LY-1, G600MX-1, G600NX-1, G600RX-1, G670AW-1, G670AW-2, G670GA-1, G770LGA-1, G770LGA-2, G770LGC-1, G770LGC-2, G770LGC-3, G770LGC-4, G770LHA-1, G770LHA-2, G770LHC-1, G770MGA-1, G770MGA-2, G770MGA-3, G770MGC-1, I, G770MGC-2, G770MGC-3, G770MGC-4, G770MGC-5, G770MGC-6, G770MHA-1, G770MHA-2, G770MHC-1, G770NGA-1, G770NGC-4, G770NGC-5, G770NGC-6, G770NGC-7, G770NHA-1, G770NHC-1, G770RGA-1, G770RHA-1, G770RHA-2, G775RGA-1, G775RHA-1, G775RHA-2, G779, Y79ABC-1, E, Y79ABC-2, Y79ABC-3, Y79ABC-4, Y79ABC-5, Y79ABC-6, Y79ABC-7, F, Y79ABD-1, Y79ABCD-2, Y79BBA-1, Y79BBA-2
780-001,780-002, 780-003, 780-845, 780-715, 780-735, 780-736, 780-737, SP715, SP715A, SP735, SP735D, SP735L, USI715U
White-Rodgers: 50D49-350, 50D49-360, 50D49-361, 50D49-401
