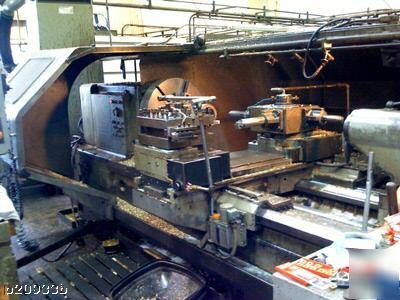

Mori Seiki only makes one larger machine than this. This is ideal for large heavy duty work. The machine was pictured while in operation in a Southern California plant. It has now been cleaned, painted, and stored in a warehouse. The year is approx 1981, retro fitted with a 1996 Fanuc 18T general numeric control.
Two large 370mm square turrets, with 16-ton clamping forces, use Mori Seiki's exclusive Ø320mm curvic couplings for extremely accurate, heavy duty cutting. Both front and rear turrets mount four cutting tools, for a total of eight in all. The front turret is primarily used for O.D. cutting and facing work, while the while the rear is for I.D. cutting. The coolant supply system has been specially designed to allow direct lubrication of tools for processing of long workpieces. For Heavy cutting, the tail stock center is incorporated in the tail stock quill (180mm or 7-1/8'') and supported by a double row of cylindrical rollers and thrust bearings.
Spindle bearing diameter (inner)
Height from floor to spindle center line
Programmable spindle speed range (stepless)
Standard cutting tool positions
X Axis Model 10 Z Axis Model 30
[SPECIFICATIONS ARE SUBJECT TO VERIFICATION PRIOR TO PURCHASE]
This item just arrived to our showroom. It is pending inspection by a trained technician. Our inspection will cover the basic operation of the item. As with any piece of equipment, new or used, this item will require additional inspection after it arrives due to the vibration during transit. We recommend you hire a professional service person to wire the machine, test it and perform any necessary service adjustments before putting it in to production. Please refer to the pictures for this item's cosmetic condition. This item is sold as pictured.
∙Items over 12000 lbs. will be sent via open-bed freight. These items cannot be palletized, put on a skid or crated through our company. Machinery movers will be contracted to remove the item from our showroom and load it on to an open-bed freight truck. These movers will be using specialty equipment which increases the cost of their service. You will be charged a minimum rigging fee of $400. We may charge more in the case of items located outside our showroom.
