Warrender RP20-t codip-hydraphragm tubulr diaphram pump


Poster: 1397319813@iowa-industrial.com

Warrender RP20-t codip-hydraphragm tubulr diaphram pump

* Codip-Hydraphram Non-Metallic Tubular Diaphram Pump

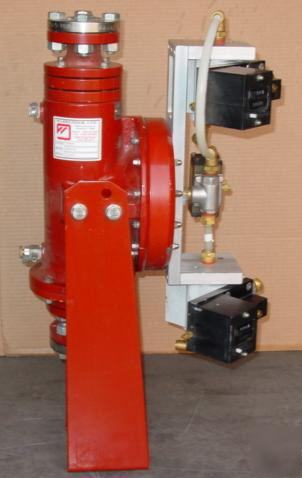

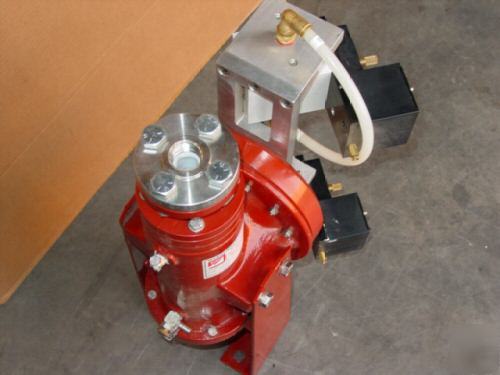

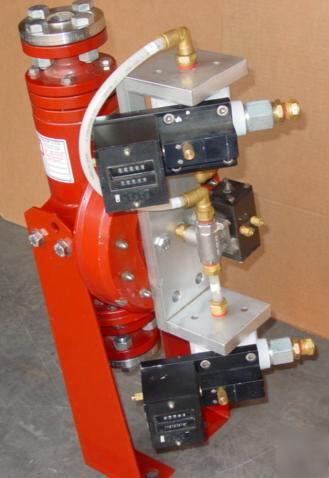

* Configured 'as pictured'.
__________________________________________________________________________________
Conventional mechanically actuated double diaphragm and peristaltic pumps require frequent maintenance due to high stress points, and accelerated chemical attack and abrasive wear.
Hydraphragm's unique design combines the benefits of hydraulic actuation with the versatility of air operation.
Double containment is another important feature of the Hydraphragm concept which addresses the growing demand for sealless pumps and ensures zero leakage in the event of a diaphragm failure
* Max. Suction Lift (H20) 13 ft
* Max. Frequency 120 cycles/min
* Capacity 0.04 gal/stroke
* Max. Air Pressure 150 psi
* Max. Discharge Head 300 ft
* Hydraulically balanced tubular diaphragm eliminates diaphragm stress for continuous processing with minimal replacements
* Pure hydrostarioally (All PTFE liners are pressed at 9000 PSI for low porosity and Hilly guaranteed against permeation.) pressed PTFE construction is standard for all corrosive chemicals and blends
* Optional Hypalon, EPDM or Viton construction is available for extremely abrasive and/or corrosive liquids
* Sealless double containment configuration prevents the exhausting of process fluid to atmosphere
* Optional electronic monitoring systems sense diaphragm leakage
* Self-priming from dry, runs dry without damage
* Pumps on demand, dead heads without damage
* No stalling during slow cycling or between strokes, ideal for filter press feed
* Heavy duty bolt on casing with 150 Ib. ANSI flanges, requiring no band clamps
* Unique elastomeric air membrane eliminates complex hydraulic systems
* Streamline flow path with a straight through-put cavity will not accumulate solids
* Can be easily cleaned, sterilized or serviced
* Completely external non-lubricated, non-freezing air valve for easy access
* Separate frequency control, independent of air or discharge pressure
* Wide range of metering controls are also available.
* Codip Hydraphragm® tubular diaphragm pumps operate without leakage, electric motor, or mechanical linkage. An automatic air valve directs air pressure to the back side of a flexible rubber diaphragm.
* On the other side of the rubber diaphragm, an inert liquid transmits power uniformly through a tubular diaphragm to the process liquid.
* Light Aluminum Alloy or Heavy Duty Ductile Iron Housing.
* Tubular Diaphragm (PTFE, Hypalon, EPDM or Viton).
* Ball Check Valves (PTFE, Hypalon, EPDM or Viton).
* Flexible Air Diaphragm (Buna, Neoprene, Silicone or Viton).
* Hydraulic Fluid (Water/Glycol, Pure Water or other compatible liquid).
* Air Distribution Valve : Pneumatic, Oil-Free, with Stroke Frequency Controller (For Adjusting Pump Cycle Independent of Air Pressure or Discharge Pressure).
* The stated capacities are based upon pumping water like fluids (1.0 s.g. & 1.0 cp), 30' Discharge Head, 3' Suction Head, and Driving Air Pressure of 40 psi
* Maximum Discharge Head: 300'
* Maximum Air Pressure: 150 PSI
Temperature Ratings (check resistance of wetted materials):
* Up to 195 °F : Buna Rubber Air Membrane & Water/Glycol Hydraulic Fluid.
* 195 to 250 °F : Neoprene Air Membrane & Glycol Hydraulic Fluid.
* 250-350 °F : Silicone Rubber Air Membrane & Glycerin Hydraulic Fluid
For further information, please visit http://warrenderltd.thomasnet.com/viewitems/non-metallic-pumps/codip-hydraphragm-174-tubular-diaphragm-pumps?&forward=1
___________________________________________________________________________________
This is used, and in "like new" condition. It is guaranteed to be in proper, working order.

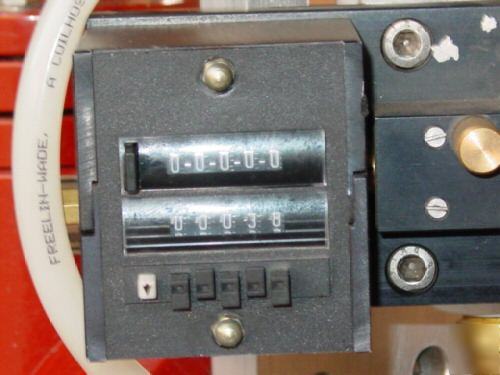

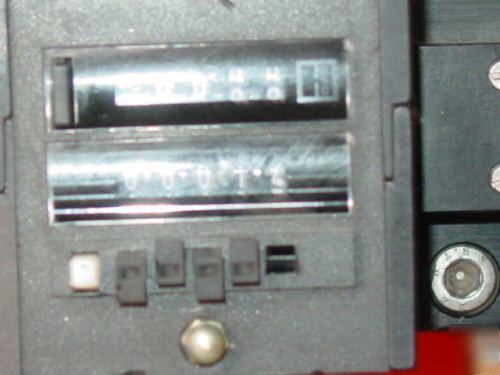

Please see the pictures for more information. Feel free to ask any questions. WANT TO REACH ME BY PHONE? Feel free to call me (Trent) toll free @ (***) 972-1346.
