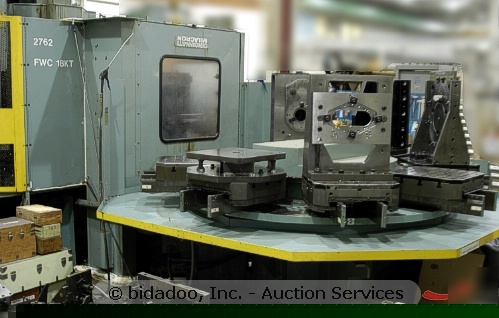

Cincinnati T-10 CNC Horizontal Milling/Machining Center
This industrial CNC mill works great and has been consistently & professionally maintained since it was new at The Boeing Company in Portland, Oregon.
Professional rigging and removal may commence by Monday, March 10th, 2008 with a full removal required by Friday, March 14th, 2008. See below for rigging cost estimates provided by pre-authorized, Boeing-approved rigging companies.
* Type: Horizontal Machining Center w/CNC
* Acramatic 900 CNC controller
* Model: 3-705-0774A; S/N: 49-86-7115
* Electrical: 115V - 18A - 1 PH - 60 Hz
* 90-piece Automatic Tool Changer (ATC)
* 8-pallet Automatic Work Surface changer/shuttle system
* Ajax 3-phase power transformer
* Square D single-phase transformer
* Longitudinal (Column, X-Axis): 32"
* Range, CL of B-Axis to CL of Spindle: +/-16"
* Vertical (Spindle Carrier, Y-Axis): 26"
* Range, Top of Pallet to CL of Spindle: 0-26"
* Cross (Pallet, Z-Axis): 26"
* Range, CL of B-Axis to Spindle Gage Line: 5-31"
* Pallet Work Surface & Index Capabilities:
* No. Pallets Capacity: 8 (11 included, 8 shown & 3 extra)
* Angle plates shown in photos are not included
* Work Surface Dimensions: 19.7" sq.
* 2000 lbs. (uniformly loaded)
* 1500 lbs. (load offset 4")
* Max. Work Piece Height: 34"
* Max. Work Piece Diameter: 27.25"
* Drive Motor: 15 HP continuous, 20 HP machine tool duty rated
* Spindle Speed Range: 20 - 4000 RPM (1 RPM increments)
* Spindle: No. 50 ANSI V-Flange (CT-50/CAT50)
* Storage Capacity: 90 tools (toolholders not included)
* Max. Tool Weight:60 lbs
* Max. Tool Diameter: 4"
* Auto Tool Change Time: 4.5 sec.
Overall: L 23' x W 17' x H 11' (approx.)
* Good - working at time of decommission
* Normal wear from previous use in working shop environment
* Regular, scheduled maintenance routinely performed by previous owner
