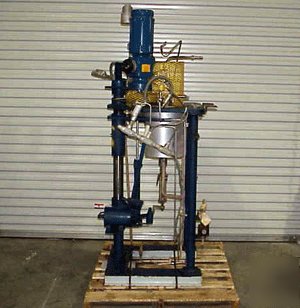

Autoclave/Hoppes Reactor 1000 PSIG Pressure Vessel
This reactor is skid mounted, reactor is 1 gallon capacity; parts appear to be stainless steel, probably 316L. Reactor has a hydraulic mechanism to raise and lower; stirrer and baffles and bottom drain from the bottom. It requires high pressure steam heat.
Natl. BD 1849 Certified by Hoppes Inc. of Springfield, OH.
* Internal: 1000 PSIG @ 500 F
Minimum Design Metal Temperature
* Internal: - 20 F @ 1000 PSIG
* Foxboro 821GH Intellegent Pressure Transmitter
* Baldor VM7006A .5 HP 1725,3PH,115/230 Motor
* Reliance Electric Disctrac Adjustable Gear Reducer Size 0002
* OEM price new (1990) $ 19,000.00
* Estimated price new (2006) $ 40,000.00
