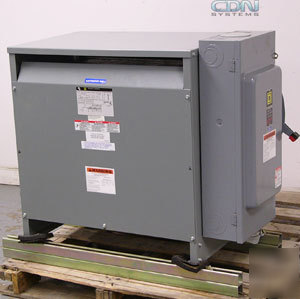

SquareD Sorgel 45kVA Transformer 45T3H 3 Phase Square D
Specifications for SquareD Cat. No. 45T3HFISNLP 3 phase Transformer
* High Voltage: 480VAC Delta (nominal, 432V to 504V depending on wiring), 54.1A, 60Hz
* Low Voltage: 208VAC Y or 120VAC, 124.9A
* Unit weight: 550lbs with switch box
* Approx. Dimensions including mounting rails and disconnect: 44"W x 20"d X 34h
* Designed for high harmonic loads
* NLP series is designed for more severe non-linear load service
* Three phase dry type transformers, 480 Delta—208Y/120
* NLP Series has maximum sound level 3dB below NEMA Standard
* 115°C temperature rise rating
* Additional coil capacity to compensate for higher non-linear load loss
* Heavy gauge ventilated indoor enclosures
Please note: this transformer (without the switch box) has a list price of $5664, according to this spec. sheet from the Square D website.
