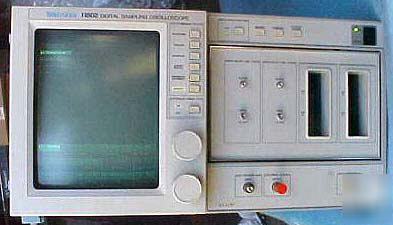

Tektronix 11802 20-GHz Digital Sampling Oscilloscope Mainframe. 4 channels, 200 KSa/s, built-in delay lines Includes a built-in dual compensated delay line with trigger pickoff. comes with SD-22 sampling head
General Description: The SD22 provides an acquisition rise time of 28 ps, and typically 450 µVRMS of displayed noise. With smoothing, noise levels are 180 µVRMS. In order to precisely capture and display the switching characteristics of high-speed communications circuits, to make accurate statistical measurements of signal noise and signal timing jitter, or to obtain stable timing measurements of fast digital ICs, the noise floor of the test equipment must be kept to a minimum. The Tektronix SD22 is the ideal instrument for these low-noise applications:
Any Questions please contact me
