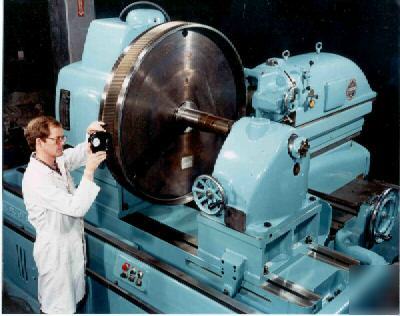

#GCJ-36/60" RED RING NATIONAL BROACH HORIZONTAL
Serial No. GCJ-1002, Model GCJ-36/60"
Machine Main Base w/Hardened & Ground Bedways
Headstock, Tailstock, & Cutter-Head Slide Equipped
w/12" Riser Assemblies Providing Greater Overall
Outside Diameter Capacity/capability
Cutter-Head For Utilizing 12" Diameter Cutters,
w/Sine-Bar Adjustment For Crossed-Axes Setting
Assorted Change Gears For Range Of Feeds & Speeds
Of Both Cutter-Head & Reciprocation Of Work Spindle
Automatic And/Or Manual Cutter-Slide Feeds, Adjustable
In Increments Of .001" to .003"
Work-Slide Mechanism For "Crowning"
Power Rapid Traverse To Saddle For Quicker Set-Up
Self Contained Coolant System w/Reservoir In Main Base
Maximum Diameter Of Work............... 60"/(1524mm)
Maximum Dia Pitch/(Mod)................ 2 DP/12.7-MOD
Maximum Stroke (w/Crowning)............ 12"/(305mm)
Maximum Stroke (w/o Crowning).......... 36"/(914mm)
Cutter Diameters Utilized.............. 7", 9" & 12"
Maximum Distance, Headstock To
Tailstock Centers...................... 62"/(1575mm)
Machine Dimensions..................... 160"x 116"x
Machine Wt, Approx..................... 38,000 LBS./(17,273 kG)
NOTES: Suitable For The Shaving Of External
Spur & Helical Gears Up To 60" (1524mm) In
Diameter, Via The Crossed-Axis Method
PRICE: F.O.B. OUR WAREHOUSE........... $27,500.00
All machines/equipment subject to prior sale.
