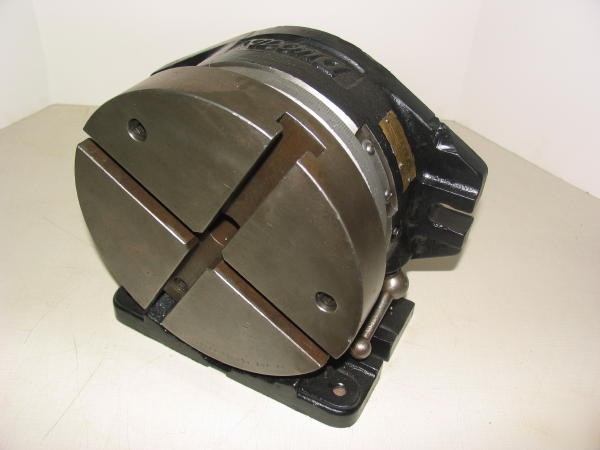

8 IN DUGAS SUPER SPACER INDEX TABLE
8 IN DUGAS SUPER SPACER INDEX TABLE
This can be mounted in either a horizontal or vertical position.
Center Height in Vertical Position: 5.87"
Total Height in Horizontal Position: 8.5"
Number of Positions on Master Index Plate: 24
Graduations Around Chuck: 360 Deg.
Graduations on Vernier: 5 Min.
Diameter of Hole Thru Chuck: 2.5"
Set of Mask Plates for 2,3,4,6,8 and 12 Divisions
Also available at an additional cost:
Special Master Index Plates
All Items Subject to Prior Sale
Be Sure to Verify Specs & Condition Prior to Purchasing
