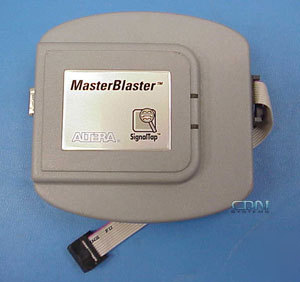

Altera MasterBlaster Serial/USB Communications Cable
The MasterBlasterTM serial/USB communications cable is a download cable that
allows PC and workstation users to program and configure devices in-system.
The MasterBlaster cable connects to a computer through a serial or USB port, and
connects to the circuit board through a standard 10-pin female connector. The MasterBlaster cable provides multidevice JTAG chain configuration and
programming support for SRAM-based devices, such as APEXTM 20K and
MercuryTM devices, EEPROM-based devices, such as MAX® 3000 and
MAX 7000 devices, and configuration devices, such as the EPC2 and EPC16.
You can also use the MasterBlaster cable to run SignalTap® II logic analysis. The MasterBlaster cable also provides multidevice Passive Serial chain configuration support for SRAM-based devices, such as APEX 20K and Mercury devices. This cable can be used in 2.5-, 3.3-, and 5.0-V systems.
Receives power from any one of the following sources:
* 5.0- or 3.3-V circuit boards
* 5.0 V from the USB cable (Windows 2000 and Windows XP only)
* DC power supply, which is supplied with the MasterBlaster communications cable
