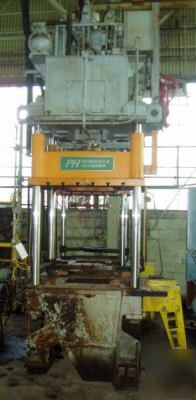

40 TON PH HYDRAULICS & AUTOMATION INC 4-POST
GE/Fanuc "Series I" Programmable Controller
Standard Tool & Die Transfer Table
Tonnage Capacity....................... 40 TON
Stroke Length, Adjustable.............. 0 to 40"
Daylight, Maximum...................... 40"
Posts, Diameter........................ 3.5"
Bed Area, L-R x F-B.................... 47.5" x 37.625"
Distance Between Posts, L-R x F-B...... 37" x 27"
Bed Opening, L-R x F-B................. 20" x 13.875"
Main Cylinder Diameter................. 7.5"
Main Cylinder Rod Diameter............. 5"
Operating Pressure Maximum............. 2078 PSI
Hydraulic Reservoir Capacity........... 120 GALLONS
Hydraulic Motor, Horsepower/RPM........ 25 HP/1180 RPM
Electrical System...................... 480/3/60
NOTE: This Machine Appears To Be In Very Good
Condition As Taken From Service.
PRICE: F.O.B. OUR WAREHOUSE........... $12,500.00
All machines/equipment subject to prior sale.
