Increase the sensitivity of any Geiger Counter.

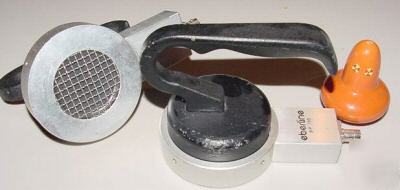

Offered for sale. ONE HP-210L Lead Shielded probe using a 2" Thin Mica Window Pancake Probe element, 100% AMERICAN MADE.
This probe WILL DETECT Polonium 210 Po-210 as well as Gamma rays, Alpha particles, Beta particles and X-Rays- Virtually all kinds of nuclear radiation except neutrons.
PROTECT YOUR FAMILY, find out what is on the road today or driving past your house.
NO MATTER WHAT GEIGER counter you are using, it can be improved by adding a pancake probe. Any unit designed to use 900V probes will work with this. Easily add a BNC connector to your CDV-700 series to accept this probe, or we can do that for you.
Ordinary probes will NOT detect any ALPHA radiation, the principle type from Plutonium, Radium, Radon, Polonium, and so many more highly radioactive elements.
Ordinary probes WILL NOT pick up weak Betas like from TC-99 the most common medical isotope.
The HP-210L picks up Alphas, Betas, weak Betas, X-Rays, and weak plus strong Gamma Rays.
The overall sensitivity is much greater than most any all metal tube by a large factor. Nothing else can equal the *SENSITIVITY* plus *WIDE RANGE* of radiation detected, even $1000.00+ scintillators which will not work on many instruments.
Up to 300,000 counts per minute form a common smoke detector element. Zero on an ordinary probe.
The probe does all the work in any Geiger Counter. The meter unit merely reports what the probe sees. If the probe can't see it, it can't be counted. The probe is what does all the work in any system.
6-100 times more sensitive than a standard "hot-dog" probes like #6993, depending upon the energy level and type of radiation being detected
SPECIFICATIONS: Radiation Detected Alpha-Beta-Gamma Gas Fill Ne + Halogen Cathode Material SS 446 Effective Depth 0.5 (12.3) Cathode Depth .61 (15.5) Operating Temperature °C -20 to +75 Density Mica Window (mg/cm^2) 2.0 Window Material Mica Connector Cap Recommended Operating Voltage 900 Operating Voltage Range 850 - 1000 Maximum Plateau Slope ( %/100 V ) 10 Gamma Sensitivity Co-60 (cps/mR/Hr) 60 Maximum Background Shielded (cpm) 30 Tube Capacitance (pf) 3 Tube Weight (grams) 125
This one IS complete probe. This is the same element as used in Alpha-Beta-Gamma probes, like Ludlum 44-9.
**Add $4.00 at checkout for a 36" long BNC cordset ***IN STOCK NOW***
ATTENTION Physics / Science Teachers and Instructors
ATTENTION Lab owners and operators
EXTREMELY LIMITED QUANTITIES OF THIS ITEM!!**
NOTE: Neither Mat Hazzard, the radioactive pumpkin nor Red the Rug are included.
