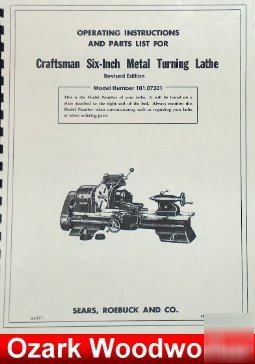

"Craftsman Six-Inch Metal Turning Lathe Manual"
This is a revised reproduction, not a photocopy, of an original Craftsman Six-Inch Metal Lathe Model 101.07301. This Craftsman lathe was made by Atlas and is similar to the Atlas 618. So, in this manual I added pages and information from the Atlas 618 manual that I believed were necessary and helpful for the operation of this machine, that were not included in the original Craftsman manual.This manual contains information on setup, lubrication, maintenance, and controls as well as a complete parts list and exploded views and adjustments.
*Level Lathe Bed........................................2,3
*Mounting Lathe............................................4
*Mounting Motor...........................................4
*Gear Clearance............................................5
*Lubrication Chart.........................................6
*Spindle Speed Chart....................................6
Operating Instructions..................................7
Threading Instructions..................................7
Adjustments.................................................8
Original Parts List and Diagram....................9
*Parts List and Diagrams........................10-15
*Threading Chart.........................................16
*Wiring Instructions.....................................17
* these pages came from Atlas 618 manual
I have collected this information for many years and have found the information they contain to be priceless in using and setting up the machines properly. I believe this manual will be a valuable resource of knowledge that will provide a lot of helpful information that is often hard to find. My manuals are not photocopies. I maintain a high standard of quality in my reproductions. Most of the manuals I reproduce look better than their originals. I have professionally digitally edited every page, and removed stains, wrinkles and handwriting. All of the manuals are printed on thick white paper to withstand shop wear and tear; they are then comb bound with heavy cover pages so they lie flat on the workbench.
