With the striking design of the Fluke 330 Series, we've taken a new look at the way you make current measurements. At how you use your tools, and how to get the results you need, faster and more conveniently. The result is a new, ergonomic concept, shaped to fit your hand and to access tight spots easily. The series feature a large display that is backlit -on most models- so readings can be taken in virtually any lighting situation. Auto-shut-off maximizes battery life so the meter works when you need it. A choice of five models gives you the right functions for your measurements.
1% ± 5 counts (20-100 Hz), 6% ± 5 counts (100-400 Hz)
2.4 @ 500A, 2.0 @ 600A, add 2% for CF>2
2% ± 5 counts (10-100 Hz), 6% ± 5 counts (100 - 400 Hz)
3 @ 500A, 2.5 @ 600A, add 2% for CF>2
2% ± 5 counts (10-100 Hz), 6% ± 5 counts (100 - 400 Hz)
3 @ 500A, 2.5 @ 600A, 1.42@1000 A, add 2% for CF>2
10-100 Hz >= 5A, 5-10 Hz, 100-400 Hz >=10A
-10 °C to +50 °C, -14 °F to 122 °F
-40ºC to +60ºC, -22 °F to 140 °F
2,500 meters max, 6,500 ft max
Add 0.1 x specified accuracy for each ºC above 28ºC or below 18ºC (above 82.4°F or below 64.4°F)
Mechanical & General Specifications
240mm x 80mm x 40mm (9.375" x 3.125" x 1.625")
250mm x 80mm x 40mm (9.875" x 3.125" x 1.625")
Alkaline approximately 150 hours continuous
Automatic low battery indicator
* AC AND DC AMPS RANGE AND RESOLUTION 0-999.9 A
* AC AND DC VOLTS RANGE AND RESOLUTION 0-600.0A
* HOLDS AND KEEPS MEASUREMENTS ON DISPLAY

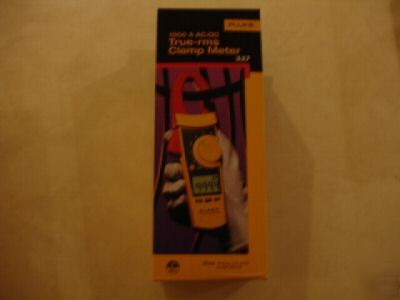

* ALSO COMES WITH BATTERY,LEADS,INSTRUCTION MANUAL, LEATHER CASE, AND WARRANTY INFORMATION..
