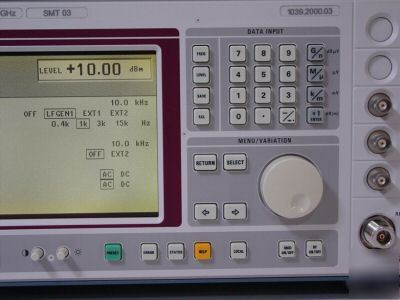

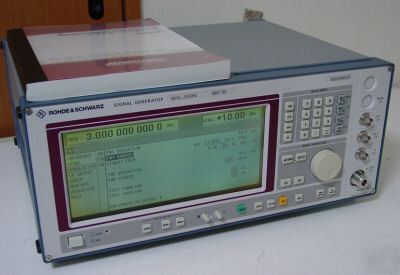

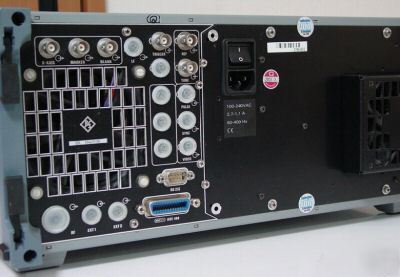

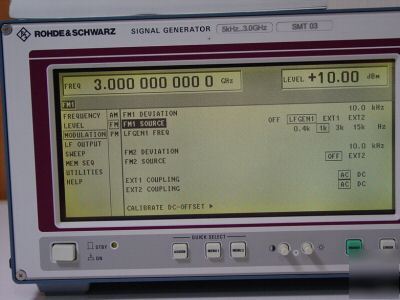

Rohde&Schwarz SMT03 5KHz-3GHz Signal Generator5KHz-3GHz res0.1Hz PhaseOffset 1deg stability1*E10-6/year SSB<-139dBcHz/Hz output -144.00-+13.00dBm res 0.01dB acc1dB 50ohms SWtime<25ms
Modulation:AM/FM/PM AM:0-100% res0.1% acc4% Dist<1% INT:400,1K,3K,15K EXT DC-100KHz FM:10Hz-20MHzdiv acc3% dist<0.3% EXT:FM1 DC-100KHz EXT2 DC-8MHz
Phase:0.001-10rad acc3% dist<0.5% DC-100KHz Sweep:Freq/Amplitude Freq:Start/stop center/span Log/Lin Dwel Ampsweep:Start/Stop DwellTime StepdB
192H432W350D 20Kg 300VA AC95-265V with manual
