TEST LEADS & CARRING CASE INCLUDED
WITH THREE YEAR FACTORY WARRANTY

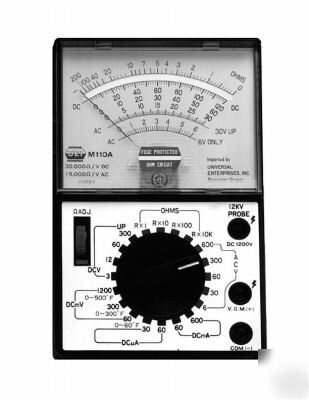

The M110A, in addition to high-resolution voltage and ohms scales needed for electrical troubleshooting also includes the features that help you maintain and troubleshoot HVAC/R systems. Features like DC millivolts and microamps let you troubleshoot flame safeguard circuits and the millivolts function helps you evaluate heat anticipators.
DC Millivolts 0 - 60, 300, 1200m V
DC Volts 0 - 3, 12, 60, 300, 1200 V
(0 - 12,000 V with optional probe)
AC Volts 0 - 6, 30, 60, 300, 600 V
Temperature 0 - 60, 300, 500°F
Input Impedance 30K /V DC, 15K /V AC
Batteries Two 1.5V, size “AA†(NEDA #15D) batteries
Fuse 6/10A (0.5 ohm internal resistance) 3AG series
Note: To maintain calibration accuracy and
instrument protection, replacement fuse must be of the proper current and resistance value.
• 600 Volts AC and 300 Volts DC
• High resolution DC ?A for flame safeguard testing
• DC millivolt scale allows use of adapters
• Color-coded and mirrored scale plate
• Three year limited warranty
Complete User Manual & Data Sheet
