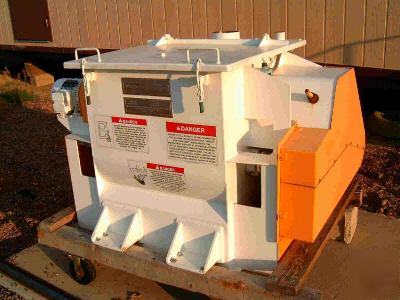

4.2 CUBIC FOOT FORBERG FLUIDIZED ZONE MIXER

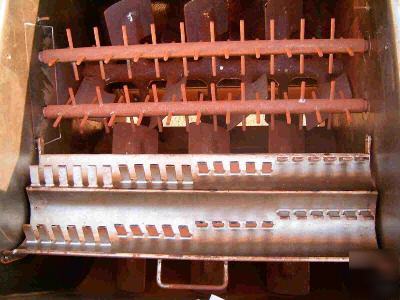

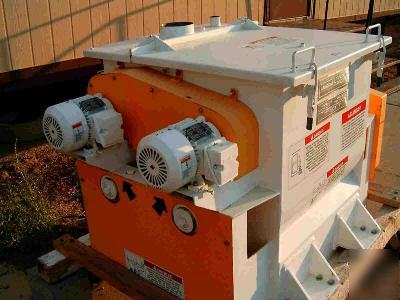

MANUFACTURER AMERICAN PROCESS SYSTEMS. SERIAL NUMBER 4388. MODEL FZM-4S. BUILT IN 11/2/95. CARBON STEEL. PIN MILL FOR BREAKING UP CLUMPS. THE OPENING IS 24 x 28 ½†INCHES. THE OVERALL DIMENSIONS ARE 58†WIDE x 51†DEEP x 39†TALL. THE MAIN DRIVE MOTOR FOR THE WO PADDLES IS 5 HP, 230/460 VOLTS, 3 PHASE, 60 HZ. THE PIN MILL HAS 2 MOTORS EACH AND ARE 1 HP, 230/460 VOLTS, 3 PHASE, 60 HZ.
