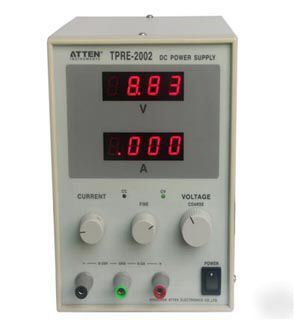

TPRE2002 CV,CC Digital Display Type Power Supply 20V,2AMain Features:1. Input voltage: 220V±10% 50Hz2. Output Voltage range: 0-20V3. Output Current range: 0-2A4. Voltage display accuracy:0.1A5. Current display accuracy:0.001A6. Power: 40W Specifications
1.Rating Operational Conditions and dimensions
220V±10% 50/60Hz(110±10%,50/60Hzalso Available if necessary)
Temperature:-10C-40C Relative Humidity:-20C-80C
2.Voltage Regulation Operational Status
(1)Output voltage can be continuously adjusted from zero to nominal.
Power Stability<=0.01%+2mV Load Stability<=0.01%+2mV (maximum ampere?3A)
Load Stability<=0.01%+5mV (maximum ampere?3A)
(3)Recovery Time<=100?S(5Hz-1MHz) (maximum ampere<=3A)
(4)Ripple Noise<=0.5mVRMS(5Hz-1MHz) (maximum ampere?3A)
(5)Temperature Coefficient<=300ppm/?
3. Current Regulation Operational Status
(1)Output current continuously adjustable from zero to nominal.
(2)Current Stability Power Stability<=0.2%+2mV Load Stability of load
All our TPR serial Power Supply are provided one year warrantee by us from the date you make a purchase. An replacement or repairment will be provided by us for free when a faulty is developed within the warranty.
