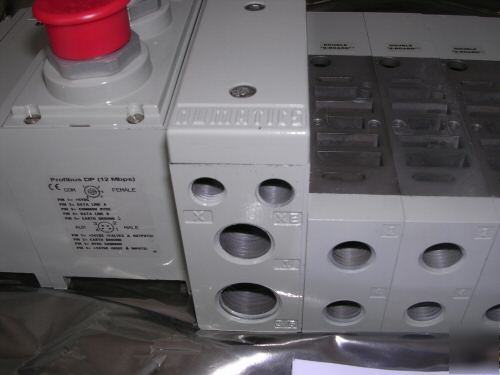

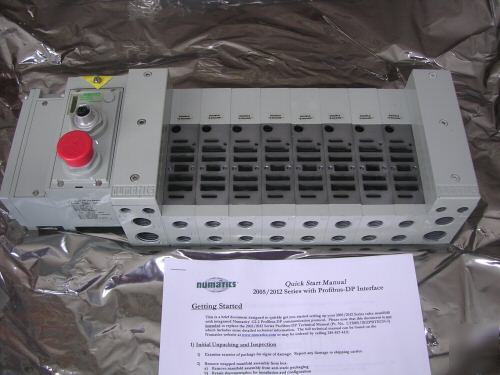

New Numatics 8 Station, Series 2012, Profibus-DP Pneumatic Manifold for 24VDC Solenoid Valves
Manifold Assembly Part Number AKCGH0003NSTD, Date of MFG. 01/05

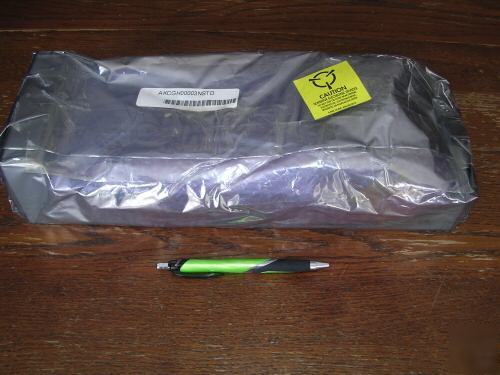

This unit was factory Sealed We Opened it for Pictures

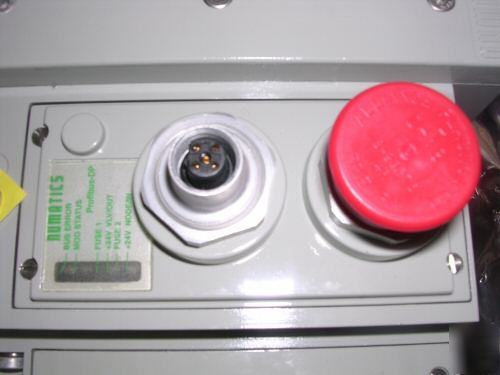

Numatics G2-2 Electronics Communication Module Kit Part Number 239-1519

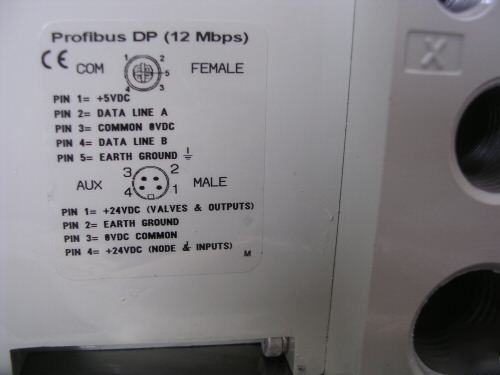

Communication Module Profibus-DP (12 MBps) with reverse key 12mm communication connection
Manual Configuration Module (MCM) Kit Part Number 239-1384
The MCM is an optional module that is used to manually configure communication parameters as well as allowing user access to self-test diagnostic functionality.
No valves Included We have many new Numatics series 2012 valves for you to design your own system

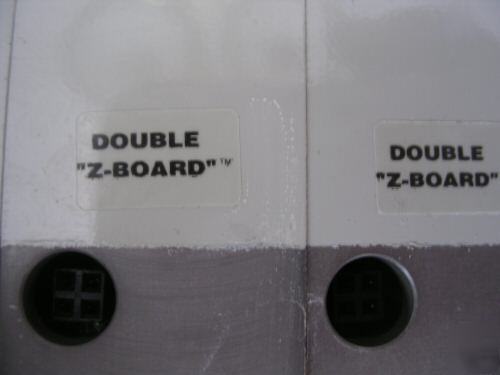

(8) Double "Z" Board manifold block bases with 1/4"npt ports with built-in connectors for valves
(2) End Plates (3N) Port#1 is 3/8"npt, Port 3/5 is 1/2"npt, Ports X and XE are 1/8"npt
More information at these site pages @ http:// /deliverables/catalogs/valves/2005-12.pdf and http:// /deliverables/catalogs/fieldbus/electronics.pdf
