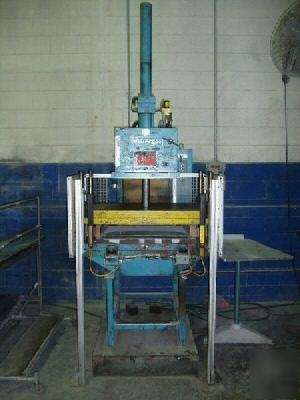

16 TON MULTIPRESS "C"-FRAME BENCH-TYPE
New 1996, Serial No M4333, Model M4P16,
Banner Light Curtains - Oversized Bed
Adjustable Stroke - Mounting Bench
Extra Deep Throat - Finger (Palm) Buttons
Tonnage Capacity....................... 16 TON
Stroke Length.......................... 12"
Daylight, Maximum...................... 18"
Main Cylinder Diameter................. 4"
Rod Diameter........................... 2.5"
Bed Area, L-R x F-B.................... 40" x 24"
Throat Depth........................... 14"
Ram Speeds, Approach................... 440 IPM
Ram Speeds, Press...................... 50 IPM
Ram Speeds, Return..................... 300 IPM
Operating Pressure Maximum............. 3150
Hydraulic Motor, Horsepower............ 7.5 HP/1725 RPM
Hydraulic Reservoir Capacity........... 30 GALLONS
Electrical System...................... 208-230-460/3/60
Weight, Approximately.................. 1800 LBS
NOTE: This Is The Heavy Duty Model Press With
A Replacement Price Over $27,000.00
PRICE: F.O.B. OUR WAREHOUSE........... $12,500.00
All machines/equipment subject to prior sale.
