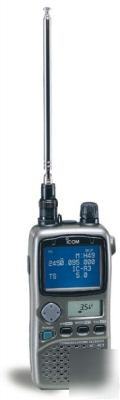

ICOM IC-R3 Wide Band Handheld Receiver (USA Version)
This information is taken directly off of the Icom IC-R3 brochure.
* 0.495-815.995 MHz, 902-2450.095 MHz
* Mode: FM, AM, WFM, AM-TV, FM-TV
* AM TV one of either NTSC M, PAL B or PAL G systems
* FM TV for 900-1300 MHz, 2250-2450 MHz ranges only
* Frequency resolution: 5 kHz, 6.25 KHz
* Number of memory channels: 450 (8 banks of 50 channels plus 50 scan edges)
* Antenna connector: BNC (50 ohms)
* Operating temperature range: -10°C to +60°C ; +14 F to +140 F
* Frequency stability: ±6 ppm max.( -10°C to +50°C)
* Power supply requirement: 3.6-6.3 V DC (negative ground)
* Current drain (at 4.5 V DC):
* At rated output: 210 mA typical (backlight off)
* At stand-by: 140 mA typical
* Power save: 53 mA typical
* TV reception: 730 mA typical (color LCD on)
* Dimensions: 61 (W) x 120 (H) x 32.9 (D) mm; 2 13/32 (W) x 4 23/32 (H) x 1 9/32 (d) in.
* Cellular telephone frequencies blocked in the US.
* Receiver system: Triple-conversion superheterodyne
* Quadruple-conversion for above 1150 MHz
* Intermediate frequencies (unit MHz)
*1 30-799.995, 1321-2099.995 MHz range
*2 800-1320.995, 2100-2450.095 MHz range
* FM, AM: More than 12 kHz/-6 dB
* WFM: More than 150 kHz/-6 dB
* Audio output power (at 4.5 V DC): 100 mW typical at 10% distortion with an 8 ohm load
* External SP connection: 3-conductor 3.5 (D) mm (1/8")/8 ohm
* Video/Audio OUT connector: 3-conductor 3.5 (D) mm(1/8")/8 ohm
* Li-Ion battery cell assembly
