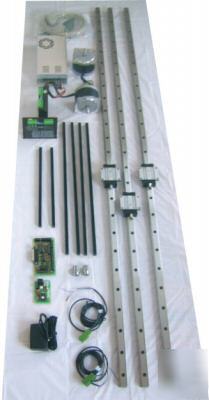

Industrial 4'x4' CNC Plasma Kit
Complete KIT to build your table
Gantry plan & Electronics diagram are included, ALL NEW
This is not a hobby kit it is 100% industrial to help you build and industrial CNC machine.
This Kit has been made for easy installation & to provide the least machining when building your CNC router, Mill, Plasma or Laser machine.
Precision class Linear guide way with blocks
2 Rails 1500mm (59.05") with 2 wide blocks for Y axis
1 Rails 1500mm (59.05") with 1 Wide blocks for X axis
2 Racks 500mm(19.68") & 1 Rack x 300mm (11.81") Y axis
2 Racks 500mm(19.68") & 1 Rack x 300mm (11.81") X axis
All are predrilled can be mounted next to each other for unlimited required length
2 NEMA34 Stepper Motors 4.3 AMP 453 oz/in
1.8 degree, 8 Leads 0.375" Shaft , Bipolar (Series or Parallel)
2 Micro Step Drivers, 200,400,800,1600,3200,6400,12800 Micro-step 4.2 AMP, 50VDC
Break out Board for 4 axis, Isolated signal with Parallel cable
Relay to control the torch ON/OFF
2 Proximity precision limit Switch
Power supply output 36VDC,5 AMP, Input 110VAC & 220VAC
ADD $250 CAM software for Plasma with pre-setup file for plug & play
ADD $450 Pre-installed CAM Software with refurbish Dell computer system 2.4Ghz,256RAM,30GB or 4 GB HDD,CD,FDD
to USA, Western Europe, Australia, South America
For more information please visit www.motiontek.ca/cncplasmakit.html
