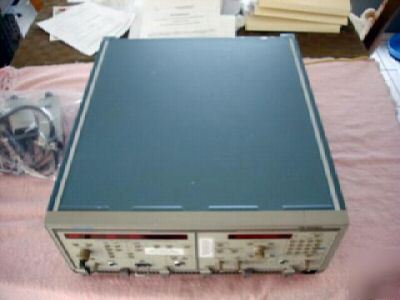

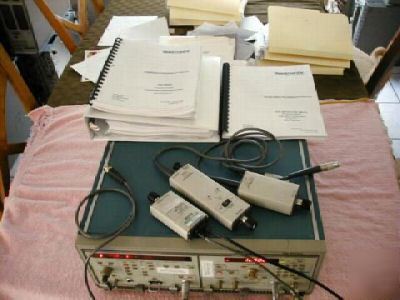

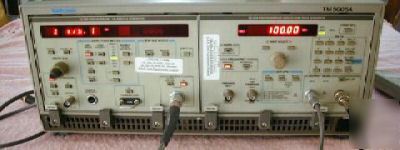

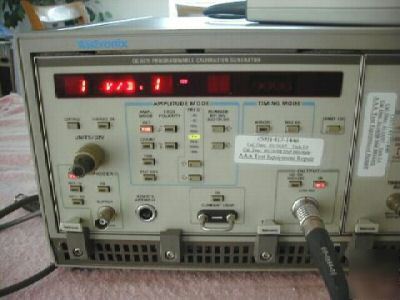

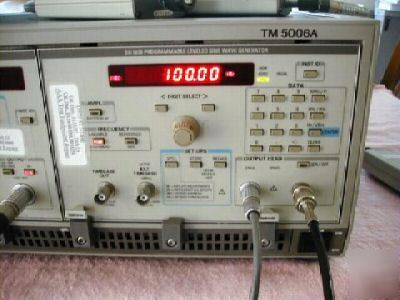

The SG 5030 Programmable Leveled Sine Wave Generator for the TM5000 series is the best choice when calibrating analog or digital scopes up to 550 MHz. It features: - 0.1 Hz to 550 MHz frequency range - Oscilloscope Bandwidth Calibration - 4.5 mV to 5.5 V Amplitude Range - Amplitude Flatness from 1.5% to 4% - 20 Stored Front Panel Settings Uses the Tektronix 015-2350-01 Leveling Head. The CG5011 with option 01 is used either manually, or as a part of an automatic calibration system to calibrate a wide range of oscilloscope parameters. The unit occupies three slots in this TM5006 mainframe, and is programmable by GPIB.

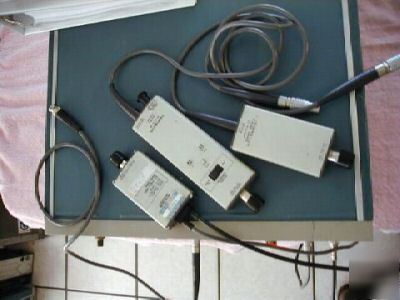

The CG 5011 complies with IEEE Standard 488.1-1987, and with Tektronix Standard Codes and Formats. Frequency: 40 µV to 80 mV: 10 Hz to 10 kHz. 100 mV to 10 V: +DC or: -DC, 10 Hz to 100 kHz. 12 V to 200 V: +DC or -DC, 10 Hz to 10 kHz. Features: *Vertical Gain *Horizontal Timing and Gain *Vertical Bandwidth/Pulse Response Characteristics *Probe Accuracy and Compensation *Current-Probe Accuracy *Calibrator-Output Accuracy *Next-Cal-Date Tracking *Option 01= adds a temperature compensated, 5 MHz crystal oscillator for a high accuracy time base. *Uses the 015-0611-00 pulse head, 015-0310-01 comparator head, and Tek. 012-0884-00 cable unit. The Tektronix TM 5006A has the IEEE STD 488 port GPIB on back. This calibration set would be great for calibrating oscilloscopes and other test equipment.
Reasonable offers are well come. REASONABLE ONES!
