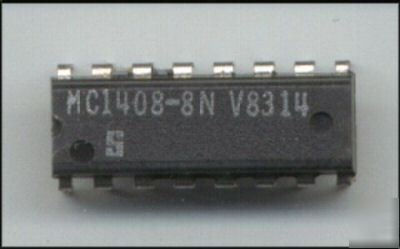

The MC1508/MC1408 series of 8-bit monolithic digital-to-analog converters provide high-speed performance with low cost. They are designed for use where the output current is a linear product of an 8-bit digital word and an analog reference voltage
Fast settling time — 70ns (typ)
Relative accuracy ±0.19% (max error)
Non-inverting digital inputs are TTL and CMOS compatible
High-speed multiplying rate 4.0mA/ms (input slew)
Output voltage swing +0.5V to –5.0V
Standard supply voltages +5.0V and –5.0V to –15V
Military qualifications pending
2 1/2-digit panel meters and DVMs
Programmable gain and attenuation
Digital-digital multiplication
Digital addition and subtraction
Speech compression and expansion
