New high precision ultrasonic thickness gage um-3 brand


Poster: 1229108243@iowa-industrial.com

New high precision ultrasonic thickness gage um-3 brand

High Precision, High Resolution and High Reliability
Up to 0.0001 inch (0.1 mil) resolution,
with ability to measure as thin as 0.0059 inch (5.9 mil or 0.15mm)
Reads in both mm and inch, with D11R high quality probe
Compact Design with Comfortable and Durable Structure

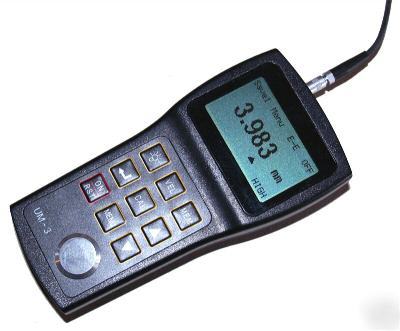

UM-3 is for high precision, high resolution and ultra fine thickness measurements. It uses the most advanced microprocessor and ultrasonic technology to offer users many outstanding features. It presents highly stable and repeatable reading, high accuracy and resolution (up to 0.001 mm or 0.0001 inch) and ability for measuring ultra thin sample (as low as 0.15mm or 0.006 inch). It also offers a compact, comfortable and durable structure for hand-holding, simple to use through the menu, multiple language selection, low power consumption (with two normal or rechargeable AA batteries). These features along with its high quality probe make UM-3 unequalled in its performance as well as its value!
**Get Precise Thickness Data in Seconds**
** The Best Price in the Market **
We offer you 20% off if you find the cheaper one
!! One Year World-Wide Warranty !!
~~ $99.00 extra for extended warranty for TWO Years ~~
~~ 30 days Money Back Gaurantee ~~
if you are not satisfied with our products
email us if you have more concerns about the product and warranty for this item.
Our Agent in United States: Ascentta Inc., Somerset, New Jersey 08873 USA
Main Processor with Calibration block (4.00 mm)
2. Precision Probe (D11R) with Replaceable Delay Tip
5. Consumer-Type 2 AA Type Alkaline Battery (3 Volt)
6. Foam-Fitted Carrying Case to provide the best protection for the gauge
* Measuring Range (for Steels):
* Interface-Echo Mode: (I-E or Standard Mode)
* 1.50 mm – 20.0 mm (0.059 in – 0.787 in).
* Echo-Echo Mode: (E-E or High Precision mode)
* 0.15 mm – 10.0 mm (0.0059 in – 0.3937 in).
* ±0.005mm or 0.0002 inch (if thickness < 3mm)
* ±0.05mm or 0.002 inch (if thickness < 20mm)
* inch: 0.01, 0.001, or 0.0001
* Display Units: Imperial and Metric
* Sound Velocity Range: 1000 to 9999 m/sec (0.0394 - 0.3936 inch/ms)
* Measuring Refresh Frequency: 4Hz in normal mode, up to 25Hz
* Memory capacity: Store up to 500 test values
* Display LCD: 42 X 57 mm LCD size with EI backlight and adjustable contrast, font size up to 13.75 mm (0.54 inch).
* Multiple Calibrations: One Point or Two Points.
* Power Source: Two 1.5V AA Batteries
* Power off: Auto power off if idle for 4 minutes
* Operating Temperature: -10 °C to +50 °C (may go as low as -20°C with pre-request).
* Unit Size: 2.9 W x 5.9 H x 1.26 D inches (73 W x 149 H x 32 D mm).
Gauge: 1 Year (add $59.00 for extended warranty for two years)
* Metal Materials: Al, Fe, Stainless Steel, Cu, Brass, Zn, Ag, Au, Sn,....
* Acrylic Resin, Water Glass, ...
* Other materials with known sound velocity values.
* ALL SALES ARE FINAL AND NON-CANCELLABLE.
* Any inquiry please email us or "Ask Seller a Question".
Thanks for looking and Ordering!
