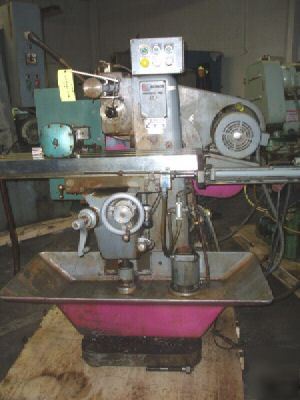

#D2 BURKE (US) HAND-OPERATED HORIZONTAL-SPINDLE
New 1968, Serial No 68104, Model D2,
Manual Rise and Fall Head Travel
Air Hydraulic Power Feed to Table
Table Dimensions (Overall) W x L........ 8" x 36"
Table Longitudinal Travel (X-Axis)...... 18"
Saddle In-Out Cross Travel (Z-Axis)..... 8"
Knee Vertical Travel (Y-Axis)........... 11"
Spindle-Head Vertical Travel (Y-Axis)... 5"
Spindle-Center to Overarm Underside..... 3.5"
Spindle-Center to Table-Top, Maximum.... 17"
Spindle Taper........................... #40 NSTD
(15) Spindle Speeds, Range.............. 50 to 2300 RPM
Spindle Motor, Horsepower............... 2 HP
Floor Space Required, L x D............. 4'2" x 5'
Weight, Approximately................... 2200 LBS
PRICE: F.O.B. OUR WAREHOUSE............ $1,950.00
All machines/equipment subject to prior sale.
