Below you will see many important product features and applications for this access control device. Please read carefully before purchasing to insure this is the correct item to meet your needs.
* We have sold this model with 0 returns!!!!!!!
* Installation instructions included.
* This model usually retails for about 2X this price.
Features........................
* 500 Block Coded Transmitters.
* Built-in Receiver and Modem.
* All data memory is non-volatile FLASH with data retention in excess of 10 years.
* Program Via Keypad, Touchtone Phone or Web Browser.
Full duplex, hands-free operation
Telephone Entry: 2- to 4-digit directory code length; display messages; talk time duration
2 form "C" relays, both can be configured for open/close; all relay contacts have RFI, ARC, and lightning suppression
For remote computer communications - 14.4 Kbps
LCD technology, 2 lines by 16 characters
Surround LED lighting for the front panel keypad; LEDs remain on at 50% intensity until a key is pressed; once a key is pressed, LEDs illuminate at 100% intensity for a period of 2 minutes
318 MHz super heterodyne receiver with -100 dBm sensitivity; built-in 20 dBm adjustable attenuator for fine tuning radio performance; antenna required for use with transmitters
1 set for connecting proprietary wired keypad
2 normally open inputs; each input assigned to specific relay
For configuration, status and troubleshooting
12/ 24 VAC or VDC, 500 mA DC typical; 750 mA DC maximum
-22° to +149° F (-30° to +65° C)
EXA-1000: remote, omni directional; includes mounting hardware and five feet of cable; EXA-2000: remote, directional-type; includes mounting hardware and ten feet of cable
250 directory codes, 500 block coded MegaCode transmitters, 500 entry codes; entry codes can be programmed for unlimited use or temporary use with up to 250 activations; all data is stored in non-volatile memory
Trim Ring: for flush/recess mounting. 14.75" H x 12.75" W x 2.75" D (375 x 324 x 70 mm)
All connections grouped together in neighborhoods for ease of installation and maintenance; wire connections via removable terminal blocks
16 gauge powder coated steel cabinet; 16 gauge brushed stainless steel front panel

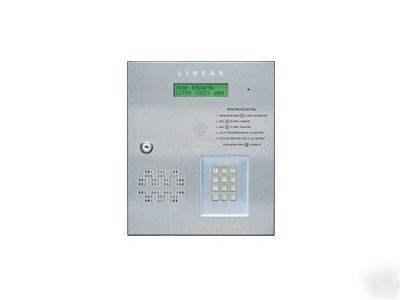

AE-500 Two Portal Telephone Entry system with built-in radio receiver and modem for computer programming; accepts transmitters and keypads as inputs; surface or gooseneck mounting standard
12.75" H x 10.75" W x 3.5" D (3.24 x 273 x 89 mm)
