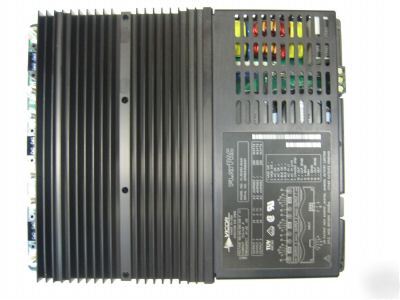

50 to 600W AUTORANGING AC-DC SWITCHER ; FlatPAC
Here we have a brand new AUTORANGING AC-DC SWITCHER , from the FlatPAC Family. This part has never been used , and is manufactured by Vicor.The FlatPAC family of user-definable off-line power supplies combines Vicor high frequency DC-DC converters and front end subassemblies in a set of modular, low profile, chassis-mount enclosures. The result is a flexible, economical power solution for systems requiring from 50 to 600 Watts of total output power.
* Microcontroller Architecture
* Meets FCC Part 15, EN55022, Class B Conducted Emissions
* Outlet Enable/Disable (except LU series)
* Remote Sense and Current Limit
* BUS OK and AC OK (except LU series)
* 1 or 2 Outputs; Up to 400 W
* 1, 2, or 3 Outputs; Up to 600 W
FlatPAC switchers incorporate one, two, or three VI-200 DC-DC converters packaged in enclosures of common height and length and three different widths. Each internal converter offers one output, 50-200 Watts of power, and output voltage of 1 to 95 Vdc. All models feature autoranging input, which automatically senses the input line voltage and sets the power supply's input range accordingly.
FlatPAC's unique modular design accommodates over 10,000 different configurations, any of which are available for quick delivery.
Inputs: 115/230 Vac autoranging
1-Up (1 internal DC-DC converter module)
* 9.25 x 2.5 x 1.37 in (235 x 63,5 x 34,8 mm)
2-Up (2 internal DC-DC converter modules)
* 9.25 x 4.9 x 1.37 in (235 x 124,5 x 34,8 mm)
3-Up (3 internal DC-DC converter modules)
* 9.25 x 7.4 x 1.37 in (235 x 188 x 34,8 mm)
