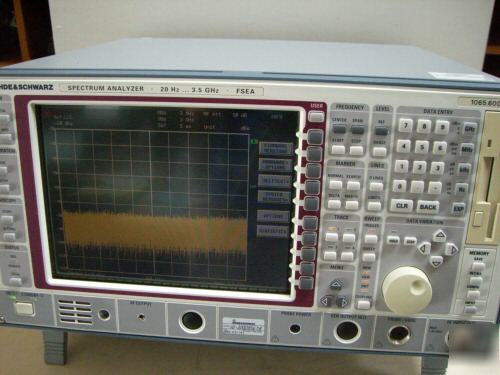

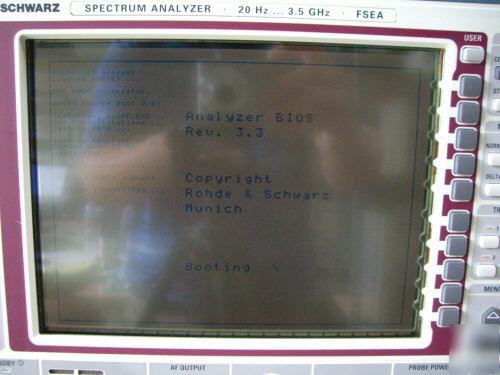

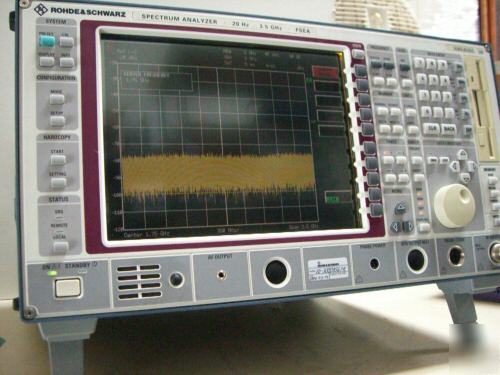

R&S FSEA30, Spectrum Analyzer, 20 Hz - 3.5 GHz w/ options
* Description: The R&S FSEA30 is optimized for both general purpose measurements as well as meeting the stringent requirements of testing advanced digital communication systems. Extremely high measurement speed, modular design and excellent characteristics put the FSEA30 at the upper end of the market. Features and specifications include:
* Input impedance: 50 Ohm
* Frequency range: 20 kHz to 3.5 GHz Frequency accuracy: 0.000000000025%
* Minimum sweep time: 1 us Maximum sweep time: 2500 s
* Resolution bandwidth range: 10 Hz to 10 MHz
* Resolution bandwidth steps: 1/2/3/5 Video bandwidth range: 1 Hz to 10 MHz
* Video bandwidth steps: 1/2/3/5
* Maximum safe AC input: 0.1 dBm Maximum DC input: 0 V
* Displayed average noise range: 81 dBm to 129 dBm
* Trigger source: external, internal
* Trigger modes: freerun, TTL Demodulation: AM, FM
* Connector type (main signal) Type-N(f)
* Probe Power: yes Noise Source Driver
* Cosmetic Condition: Excellent
* Other Comments / Notes: Unit includes the following Options:
* Option B4: Low Phase Noise
* Option B7: Vector Signal Analyzer
* Warranty: Rest assured that your purchase includes a 3-day DOA Guarantee. If the item is DOA, you will need to notify us within 3-days of receipt. Item(s) must be returned in the same condition as received within 7 days of receipt. (See below for further details).
We strongly recommend that you properly pack and insure the package against loss or damage. It is ultimately your responsibility that your returned product arrives at our location within the allotted return time frame in the same condition it was sent.
