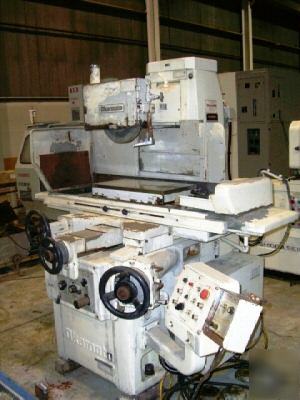

1990 Okamoto 124N Accugar Precision Hydraulic Surface Grinder
(SN# 7734) Inventory ID: 62655
Working Surface of Chuck.................... 12"x24"
Max Grinding Length......................... 24"
Max Grinding Width.......................... 12"
Max Dist. Under 12"......................... 13.7"
Max Longitudinal Travel..................... 29.5"
Max Cross Travel of Table................... 13.6"
Surface Length of Pad....................... 30"
Surface Width of Pad........................ 11.8"
T-Slot of Table Feeds(No. X Width).......... 3"x .669"
Hydraulic Feed Per Revolution............... 1- 100 FPM
Hand Feed per Revolution.................... 1.85"
Hydraulic Intermittent Feed................. 0.02"-0.8"
Hydraulic Continuous Feed Per Minute........ 4- 40 IPM
Hand Feed Per Revolution.................... .25"
Graduation of Handwheel..................... .002"
Vertical Movement of Wheel Head
Automatic Feed Per Table Stroke (OPT)....... 0.001- .015"
Automatic Feed Per Table Reversal........... 0.001- .015"
Graduation of Handwheel..................... .0002"
Hand Feed Per Revolution.................... 0.05"
Vertical Rapid Feed......................... 19 IPM
