Movincool 10SFU classic 10 a/c portable air conditioner


Poster: 293411238@iowa-industrial.com

Movincool 10SFU classic 10 a/c portable air conditioner

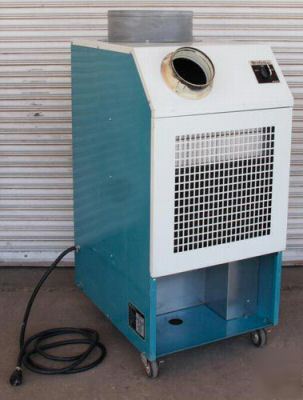

Nippon Denso MovinCool 10SFU Classic 10 Portable Air Conditioner
Comes with what you see in the pictures. If you don't see it, you probably wont get it.
Specifications are from Grainger and may vary slightly due to upgrades, options, or revisions this unit may or may not have.
The unit is guaranteed to work but is missing the Condensate Tank because it was hooked up to piping for external drip. The unit is weathered which is hard to tell from the pictures.
The Unit's Serial Number Tag Reads:
Power Requirements: 115 Volts, Single Phase, 60 Hz, 11.7 Amps
Input Test Condition: D.B. 95ºF, W.B. 75ºF
Rating Condition: D.B. 95ºF, W.B. 83ºF
Cooling Capacity: 10,000 BTU/hr
Cooling Amps./Watts. 12.5A, 1.3 kW
Total Refrigerant Charge: R-22 / 1.15 lbs.
Design Pressure Hi/Low: 284.4 / 426.6 PSIG
Simply roll into the room and plug in for effective spot cooling of heat-sensitive equipment, people, and production processes.
Easy to install and operate (exhaust duct required for most installations). Unit automatically shuts off when condensate tank is full. Auto restart upon power restoration after outage. Includes compressor short-cycle and overload protection. Resin-treated coils resist corrosion. UL and C-UL Listed. ETL Classified.
Classic and Classic Plus Series:
Designed to cool factories, warehouses, product lines, service bays, and outdoor events. The Classic series offers mechanical temperature control.
* Units operate in extreme temperatures up to 115ºF
* Up to 25ºdrop from ambient temperature
* Rugged design for harsh environments
NEMA Plug Configuration: 5-15P
Ambient Operating Temperature Range: 68ºF to 105ºF
Condensate Tank Capacity: 5.0 Gallons (tank not included)
For More Pictures Please Click the Following:
* Picture 6 - Front View, Panel Open
* Picture 7 - Right View, Panel Open
* Picture 9 - Inside Air Supply Connection
* Picture 10 - Top Connection
* Picture 11 - The Unit's Serial Number Tag
