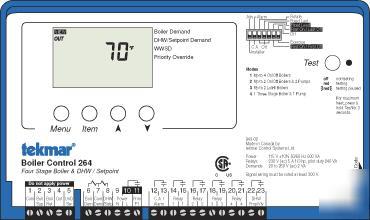

* Model: Boiler Control 264 - Four Stage Boiler & DHW / Setpoint
* Control: Microprocessor PID control; This is not a safety (limit) control
* Enclosure A, blue PVC plastic
* Dimensions: 6-5/8" H x 7-9/16" W x 2-13/16" D (170 x 193 x 72 mm)
* Approvals: CSA C US, meets ICES & FCC regulations for EMI/RFI
* Ambient conditions: Indoor use only, 32 to 120°F (0 to 50°C), < 95% RH non-condensing
* Power supply: 115 V (ac) ±10% 50/60 Hz 600 VA
* Relays: 230 V (ac) 5 A, 1/3 hp, pilot duty 240 VA
* Sensors Included: NTC thermistor, 10 kΩ @ 77°F (25°C ±0.2°C) ß=3892
Outdoor Sensor 070 and Universal Sensor 071
* Demands: 20 to 260 V (ac) 2 VA
* Optional Devices: tekmar type #: 032, 071
* Brand New In Box - Factory Seal Still Affixed
* Compare On-Line at $791.95
Check out my other items! My Stores Logo
Be sure to add me to your favorites list!
The Boiler Control 264 is a microprocessor-based four stage boiler control. The 264 can provide either outdoor reset and setpoint operation or outdoor reset and DHW operation. The 264 stages and has Equal Run Time Rotation of the boilers and also operates the system pump and individual boiler pumps. One, two, three and four stage on / off boilers can be operated. The 264 also has options for fixed lead and fixed last rotation sequences. A contact is also available for either a combustion air damper or external alarm.
