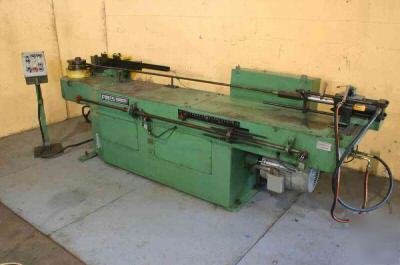

2" PINES MODEL #2 ROTARY HYDRAULIC TUBE BENDER
SERIAL .......................................... 11030-93205
MODEL ........................................... 2
YEAR NEW ........................................ 1993
CAPACITY: STEEL PIPE (SCHEDULE 80) .............. 2"
CAPACITY: NON-FERROUS TUBE (Y.P. TO 25K PSI) .... 3" X .188"
CAPACITY: STEEL TUBE (Y.P. TO 40K PSI) .......... 3" X .109"
CAPACITY: STAINLESS TUBE (Y.P. TO 60K PSI) ...... 3" X .065"
CAPACITY: SQUARE TUBE (MILD STEEL) .............. 2-1/2" X .083"
CAPACITY: ROUND BAR (MILD STEEL) ................ 1-7/8"
CAPACITY: SQUARE BAR (MILD STEEL) ............... 1-11/16"
MAXIMUM RADIUS .................................. 12"
MAXIMUM BEND ANGLE .............................. 180 DEGREE + OVERBEND
MAXIMUM TUBE LENGTH OVER MANDREL ................ 7'5"
BENDING ROTATION ................................ COUNTER CLOCKWISE
AVERAGE BENDING ARM SPEED ....................... 5-1/2 RPM
OPERATING PRESSURE .............................. 2000 PSI
8-POSITION DEGREE OF BEND SELECTOR .............. YES
HYDRAULIC MANDREL EXTRACTOR & CLAMPING .......... YES
BIJUR LUBRICATION ............................... YES
MOTOR ........................................... 7-1/2 HORSEPOWER
CALL US AT 800/MACHINE (800/622-4463) TO SPEAK TO A SALESMAN. WE ARE HAPPY TO HELP!!
