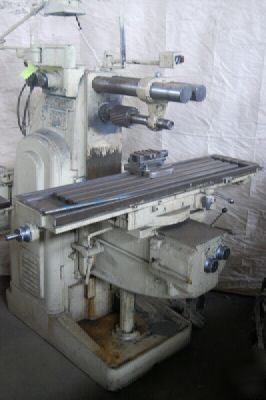

#2CE KEARNEY & TRECKER UNIVERSAL HORIZONTAL MILL
New 1956, Serial No 8-7765, Model 2CE
Vertical Head Mounted On Swing Away Arm
Swiveling Table (47-Degrees Right Or Left)
Table Working Surface, W x L........... 12" x 52"
Table Longitudinal Travel (X-Axis)..... 28"
Saddle In-Out Cross Travel (Z-Axis).... 10"
Knee Vertical Travel (Y-Axis).......... 17"
Spindle Taper.......................... #40 NSTD
(16) Spindle Speeds, Range............. 25 to 1300 RPM
(16) Longitudinal and Cross Feeds...... 1/2 to 25 IPM
Vertical Feeds, Range.................. .165 to 8.3 IPM
Power Rapid Traverse, Long & Cross..... 100 IPM
Power Rapid Traverse, Vertical......... 33 IPM
Motor, HP/RPM.......................... 3 HP
Electrical System...................... 220-440/3/60
Overall Dimensions..................... 61" x 56"
Height................................. 62"
Weight, Approximately.................. 3500 LBS
PRICE: F.O.B. OUR WAREHOUSE........... $1,950.00
All machines/equipment subject to prior sale.
