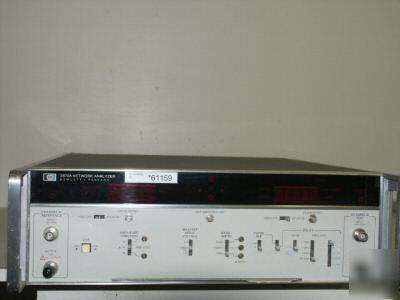

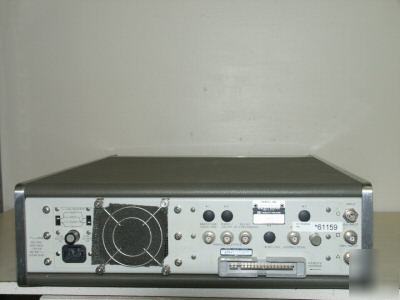

HP 3570A Tracking Detector, 50Hz to 13MHz. 2 Channels, for Use With 3040A, 3041A, 3042A Network Analyzers.
Frequency Range: 50 Hz to 13 MHz.
Channel A and B Outputs: Electrically Idential-equal in Frequency and Amplitude to the Signal Generator Output. Output Impedance: 50 Ohms +/-2%. Maximum Output: 1V rms Into 50 Ohms
Channel A and B Inputs: ElectricallyIdentical Both Tuned to The Signal Generator's Frequency. Input Impedance: 1MOhm +/-2% Shunted by 30 pF Nominal. Input Signal Range: 1V rms to 1uV rms. Input Selectivity: 10 Hz, 100 Hz and 3 kHz Bandwidths.
Amplitude Measurements: dB Measurement Reference Selectable; 1V, 0 dBm, or 0.1V Reference. Measurement Range: 100 dB Below Selected Reference. Display Resolution: 0.01 dB. Display Range: 0 to -100 dB Below Reference Setting (Using A or B "Amplitude Function"). -100 dB to +100dB (Using B-A "Amplitude Function")
All Items sell with 5 days right of return, and 15 days GUARANTEE on all parts and labor.
